Enhancing Precast Production with Steel Magnetic Recess Former Lifting Anchors

In today’s fast-paced precast concrete industry, manufacturers face constant pressure to boost efficiency, maintain tight tolerances, and cut costs wherever possible. One recurring headache is securing lifting anchors to steel side forms before pouring concrete. Traditional methods—welding, bolting, or clamping—often demand extra labor, risk misalignment, and leave permanent marks on expensive formwork.

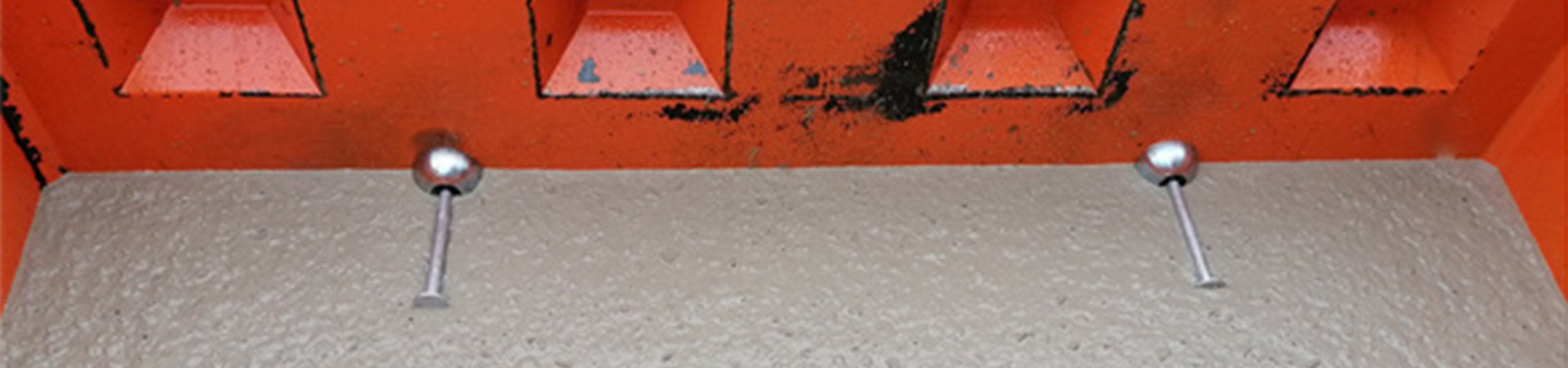

Enter the Steel Magnetic Recess Former: a sleek yet robust solution that combines the raw holding power of neodymium magnets with a thoughtfully engineered steel housing. By simply snapping the former into place over an anchor’s recessed pocket, you can guarantee accurate positioning and solid retention, without a single bolt or weld. Whether you’re casting hefty stair panels, interlocking concrete blocks, or custom façade elements, these magnetic formers can revolutionize your workflow, saving time and extending the life of your forms.

What Is a Steel Magnetic Recess Former?

A Steel Magnetic Recess Former is much more than a handy paperweight. It’s a precision-engineered fixture designed to grip lifting anchors firmly against a steel side form via integrated neodymium magnets. Unlike mechanical fasteners that require tools and leave physical scars, the magnetic approach is non-invasive: just place, press, and pour—then peel off the former once the concrete sets. This simplicity translates into fewer errors, less downtime, and a cleaner production environment.

Key Components & Materials

Semi-Sphere Steel Housing

Crafted from hardened alloy steel, the former’s semi-spherical shell offers a snug fit around the anchor’s recess. This geometry helps distribute contact pressure evenly, preventing tilting or shifting under load.

NdFeB Strong Magnet

Renowned for its exceptional strength-to-size ratio, the NdFeB sits at the heart of the housing, generating pull-off forces between 150 kg and 400 kg. This ensures that even heavier anchors stay put, no matter the vibration or slight form movement during pouring.

Protective Coatings

To withstand the harsh realities of concrete casting—moisture, alkaline exposure, abrasive particles—the steel housing and magnet are treated with a durable zinc or epoxy finish. This layer guards against corrosion, chipping, and loss of magnetic performance over time.

Design & Working Principle

At its core, the Recess Former operates on a straightforward magnet-to-steel attraction. When you align the former’s concave side with the anchor’s steel plate, magnetic flux flows through the form surface and back into the magnet, creating a powerful holding force. The semi-spherical contour aids in self-centering, so even if alignment isn’t perfect at first glance, the magnet gently pulls the former into exact position. Once the concrete hardens, you can slide a pry bar under the ergonomic edge and pop the former off—no tools, no sparks, no permanent damage to your form.

Performance Specifications

Retention Force Variants

150 kg – Ideal for lightweight anchors or non-structural elements.

250 kg – Suitable for medium-duty anchors, including many wall panels.

300 kg – The workhorse option for common stair treads and larger panels.

400 kg – Heavy-duty choice for thick slabs or specialized architectural components.

Operating Temperature

Rated to function smoothly from –20 °C up to +80 °C, these magnets remain reliable in both winter pours and hot-season pours without losing grip.

Cycle Durability

Each former endures rigorous pullforce and fatigue testing, replicating thousands of casting cycles. Manufacturers report consistent magnetic strength well beyond 5,000 uses, translating to years of trouble-free service.

Installation Process

Prepare the Form Surface

Remove chips, oil, and dust from the area where the anchor will attach. A clean surface maximizes magnetic contact.

Position the Anchor

Insert the lifting anchor into the pre-cut recess on your form, ensuring the plate is flush and the anchor stands plumb.

Attach the Recess Former

Orient the semi-sphere opening toward the anchor. Gently press until you feel a firm “click,” signaling full magnetic engagement.

Verify Alignment

Take a quick visual check: the former should sit flush with the form, and the anchor should align straight up.

Pour Concrete

Proceed with your standard casting operation. The former’s low profile won’t interfere with form ties or pour height.

Remove After Curing

Once the concrete has set, slip a thin pry bar or chisel under the former’s rim. Pop it free, then clean and store for the next cycle.

Primary Applications

Thick Precast Panels

For panels thicker than 150 mm—stair flights, wall sections, elevator cores—the high-strength magnets ensure anchors remain immovable, even under heavy wet-concrete loads.

LEGO-Style Concrete Blocks

In interlocking block systems, consistent anchor depth is crucial. The recess former guarantees each block’s lifting anchor rests precisely where the design intends.

Custom Architectural Elements

Sound walls, decorative façades, and bespoke structural pieces benefit from the rapid setup and repeatable accuracy provided by magnetic formers.

Other Precast Components

From bench seats to boiler supports, wherever a steel form is involved, magnetic fixers streamline anchoring tasks.

Benefits for Manufacturers

Pinpoint Accuracy

No more skewed anchors or off-center lifts. Magnetic formers deliver the same placement every time, reducing post-cast rework and warranty claims.

Lean Production

Cutting anchoring steps by up to 60% frees workers for higher-value tasks, boosting throughput and lowering labor costs per panel.

Form Longevity

Scratch-free formwork stays in service longer when you eliminate drilling and welding. Over time, the savings in maintenance and replacement easily offset the investment in magnetic formers.

Safer Environment

Removing hot work (welding) and sharp tools from the shop floor reduces injury risk and lowers insurance premiums.

Maintenance & Longevity

Routine Inspection

Once a week, glance over former surfaces for chipped coatings or embedded debris. Any defects can be quickly fixed or isolated.

Cleaning Procedure

After each casting cycle, wipe the housing and magnet face with a microfiber cloth. Avoid metal brushes that might scratch protective layers.

Recoat as Needed

If the zinc or epoxy layer shows wear, apply standard touch-up paint to prevent rust and keep magnets at peak performance. Proper care extends the life of each former well beyond five years in most facilities.

Case Study Snapshot

At a mid-sized precast plant producing over 200 stair panels daily, the operations team adopted HULK Metal’s 250 kg Steel Magnetic Recess Formers. Within two weeks:

20% Faster Cycle Times: Setup time per anchor dropped from 90 seconds to under 35 seconds.

75% Fewer Misalignments: Anchor repositioning—previously a frequent bottleneck—became virtually nonexistent.

30% Lower Maintenance Costs: Formwork damage from mechanical clamps and weld spatter all but disappeared, saving on repair and replacement.

These gains translated into higher monthly output without additional shifts or headcount—a true payoff for the magnetic approach.

Why Choose HULK Metal

HULK Metal brings over 20 years of hands-on expertise in metal forging, CNC machining, and quality-driven assembly. Our Steel Magnetic Recess Formers are crafted in an ISO 9001-certified factory and undergo multiple inspections before shipping. We stand out by offering:

Comprehensive Supply Chain

From sourcing premium steel billets to delivering finished formers just-in-time, we manage every step to guarantee availability and consistency.

Rigorous Testing

All units pass pull-force verification, coating adhesion checks, and fatigue testing, so you get reliable performance from day one.

Dedicated After-Sales Support

Technical advice, fast-track replacements, and flexible return policies mean downtime is virtually unheard of.

Our commitment to service ensures that when you call HULK Metal, you get more than a product—you get a partner invested in your success.

The Steel Magnetic Recess Former is not just another accessory—it’s a game-changer for any precast operation seeking precision, speed, and cost savings. By harnessing the raw power of neodymium magnets in a user-friendly design, you can eliminate the headaches of mechanical anchoring and usher in a new era of lean, reliable production.

Ready to see how magnetic formers can transform your workflow? Reach out to HULK  Metal today for a customized quote, technical consultation, and sample units. Let us help you build stronger, faster, and smarter—one lift at a time.
