Wavy Tail Anchors: The Optimal Lifting Solution for Thin-Walled Precast Concrete Elements

Introduction to Wavy Tail Anchors

In modern precast concrete construction, lifting ultra-thin components safely and efficiently requires specialized anchoring systems. Among the most innovative solutions is the Wavy Tail Anchor. This advanced lifting anchor is designed specifically for use in thin-walled concrete elements such as lightweight panels, architectural facades, or precast masonry walls.

The Wavy Tail Anchor addresses key challenges in precast logistics by offering high tensile performance without the need for excessive reinforcement. With a unique tail design that embeds securely within the concrete, it ensures safe load transfer even in elements with minimal thickness. HULK Metal manufactures Wavy Tail Anchors that meet stringent European standards and serve diverse project needs worldwide.

Key Applications in Precast Construction

The Wavy Tail Anchor is engineered for use in several types of thin and non-reinforced concrete components, including:

Lightweight façade panels

Thin partition walls

Precast masonry wall units

Safety and highway barrier components

Thanks to their minimal installation depth and efficient force transmission, Wavy Tail Anchors are ideal for elements where space constraints or structural thinness limit the use of conventional lifting systems. They are particularly effective when lifting panels in a horizontal position and then rotating them to vertical during placement — a common practice in modular construction and prefab housing.

By offering secure anchorage even in low-thickness concrete, these anchors significantly reduce the need for additional lifting reinforcement, streamlining the production and installation process.

Structural Design and Engineering Advantages

The standout feature of the Wavy Tail Anchor is its wave-shaped reinforcing tail. This design ensures the safe distribution of tensile forces into the surrounding concrete, even in components with concrete strength as low as 15 N/mm².

Key structural advantages include:

Localized force transmission: The wave tail transfers force effectively to the surrounding concrete, minimizing stress concentration.

Reinforcement-free anchorage: No extra steel reinforcement is required if basic surface reinforcement and edge distances are observed.

Installation within thin elements: Unlike traditional anchors, the Wavy Tail Anchor can be placed near the surface of thin components without compromising load capacity.

The tail design also reduces the risk of cracking or failure during lifting, especially in panels that would otherwise require complex reinforcement detailing.

Installation Guidelines and Safety Considerations

Proper installation is crucial for the performance and safety of any precast lifting anchor system. For Wavy Tail Anchors, several guidelines should be strictly followed:

Minimum Requirements:

Concrete Strength: ≥ 15 N/mm² at time of lifting.

Panel Thickness: Should meet the minimum thickness requirements as defined in the product datasheet.

Edge Distances: A minimum edge distance must be maintained to ensure effective force transfer without cracking.

Surface Reinforcement: A Light surface mesh or rebar layer is sufficient if placed correctly.

Installation Best Practices:

Position the anchor tail accurately to ensure full embedment in concrete.

Use optional plastic thread protectors (caps) to prevent contamination during casting.

Secure the anchor during formwork assembly to prevent displacement.

Confirm alignment to facilitate proper attachment of lifting devices.

With proper installation, the Wavy Tail Anchor provides a reliable and compliant lifting point for thin precast units, reducing jobsite accidents and ensuring precise positioning.

Dimensions and Load Capacity

Wavy Tail Anchors come in various sizes to suit a wide range of panel dimensions and weight classes. HULK Metal offers detailed technical datasheets for each model, including:

Anchor length and tail curvature radius

Thread size

Minimum panel thickness

Safe Working Load (SWL)

For example, at a concrete compressive strength of 15 N/mm², the typical SWL of Wavy Tail Anchors ranges from 1.3 tons to 2.5 tons, depending on anchor size and installation parameters.

Each anchor is tested in accordance with international standards and undergoes load validation under dynamic and static conditions.

Comparison with Traditional Anchors

While standard lifting anchors—such as Straight Tail Anchors, Lifting Loops, and Rebar Anchors—perform well in general precast applications, they often fall short when used in thin or fragile components.

Wavy Tail Anchor vs. Conventional Options:

Wavy Tail Anchors offer a simpler installation, fewer components, and a lower risk of reinforcement congestion, which is especially useful for architectural and non-structural precast.

Why Choose HULK Metal’s Wavy Tail Anchors

HULK Metal provides a full line of high-performance precast lifting solutions, and our Wavy Tail Anchors are engineered to meet or exceed customer expectations.

Why engineers and contractors trust HULK Metal:

Precision Manufacturing

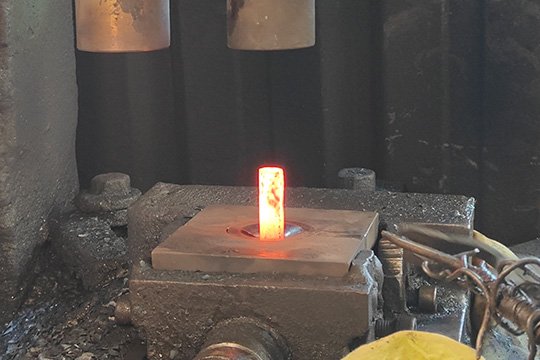

Each anchor is hot forged using high-strength alloy steel to ensure consistent grain structure, enhanced mechanical properties, and durability.

Advanced Thread Processing

Our socket threads are CNC machined and inspected for compatibility with lifting clutches, avoiding misfits and on-site delays.

Surface Treatment Options

Anchors can be galvanized or zinc-plated to provide long-term corrosion resistance, especially in outdoor or high-humidity environments.

CE and ISO 9001 Certified

All products are manufactured in certified facilities, with full traceability, third-party testing (TÜV, SGS), and compliance documentation available upon request.

Customization & Technical Support

We offer custom tail shapes, thread sizes, and embedded lengths based on your engineering drawings. Our technical team provides lifting layout guidance, load calculation assistance, and on-site installation advice.

Fast Delivery & Reliable After-sales

With a mature supply chain, HULK Metal delivers large-volume orders quickly. We provide replacements or returns if issues arise with product quality or quantity.

The Wavy Tail Anchor is a highly specialized yet essential component for modern precast construction, especially where thin-walled concrete panels are involved. By simplifying installation, reducing reinforcement needs, and ensuring safety under load, it offers unmatched performance for architects, engineers, and contractors alike.

At HULK Metal, we are committed to supplying anchors that not only meet technical standards but also streamline your production and improve your project efficiency.

Looking for a safe and efficient lifting anchor for your thin concrete panels? Contact HULK Metal today for technical consultation and a competitive quote.
