Solid Rod Lifting Sockets
Description:
Solid Rod Lifting Sockets are produced by using 20#steel, Q345 steel, or stainless steel rods through blanking, drilling, tapping, surface treatment, and other processes. During the testing process, vernier calipers and micrometers are used to test the appearance dimensions, a go-no-go gauge is used to test the thread tolerance and a tensile tester is used to test the lifting performance of Solid Rod Lifting Sockets (more than 3 safety equal pulls are required). We have more advanced production equipment, which can complete your order faster. Solid Rod Lifting Sockets are placed in specific locations on the steel frame before pouring the concrete, and the steel bars pass through the holes in them. The threads of Solid Rod Lifting Sockets need to be blocked with plastic caps to prevent the inflow of concrete. Its load-bearing capacity is between 0.5ton- 12.5tons. It has excellent corrosion resistance after hot-dip galvanizing or electro-galvanizing. We can provide you with complete Solid Rod Lifting Sockets production services. You can place an order with us anytime.
Parameters of HULK Metal Solid Rod Lifting Socket:
| NAME | MATERIAL | Stainless Steel / Q345 / Q235 / 20# / Customizable | |||||
| Solid Rod Lifting Socket | SURFACE TREATMENT | Raw Color, Electro-galvanized, Hot-dip Galvanized | |||||
| SAFETY FACTOR | ≥ 3 | ||||||
| CERTIFICATE | CE / ISO 9001 | ||||||

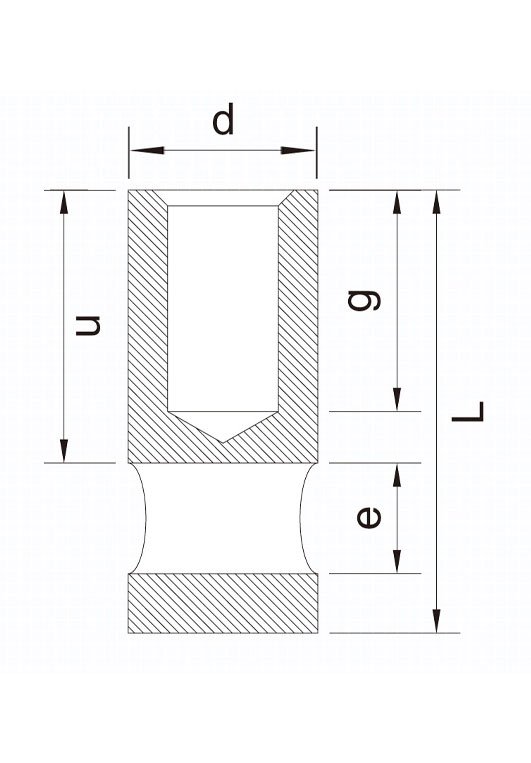

| SWL (tons) | CODE | THREAD(RD/M) | L(mm) | D(mm) | G(mm) | E(mm) | |
| 0.5 | SS-M/RD12-050 | 12 | 50 | 17 | 22 | 9.5 |
| 0.8 | SS-M/RD14-054 | 14 | 54 | 19 | 26 | 11.5 | |
| 1.2 | SS-M/RD16-061 | 16 | 61 | 23 | 30 | 14.0 | |
| 1.6 | SS-M/RD18-070 | 18 | 70 | 24 | 34 | 14.5 | |
| 2.0 | SS-M/RD20-073 | 20 | 73 | 28 | 38 | 16.5 | |
| 2.5 | SS-M/RD24-086 | 24 | 86 | 32 | 46 | 19.0 | |
| 4.0 | SS-M/RD30-107 | 30 | 107 | 40 | 58 | 22.0 | |
| 8.0 | SS-M/RD42-145 | 42 | 145 | 54 | 80 | 32.0 | |
| 12.5 | SS-M/RD52-195 | 52 | 195 | 70 | 100 | 40.0 | |
Features About Solid Rod Lifting Sockets:
-
Higher Quality Solid Rod Lifting Sockets:
ISO 9001 Factory:
Your order will be produced in our ISO9001-certified factory. A strict production process lays the foundation for high-quality Solid Rod Lifting Sockets.
Professional Testing Team And Advanced Testing Instruments:
Our quality control center can complete the inspection of Solid Rod Lifting Sockets' size, thread tolerance, and lifting performance. The professional quality inspection team will complete the quality inspection of the order strictly according to your requirements.
Strict Inspection Process:
We have a strict quality inspection process, testing the physical and chemical properties of raw materials, testing various indicators of finished products, and testing the quantity of products in the box. Make sure that the goods you receive can meet your requirements.
Can Pass CE Certification and TUV, SGS Inspection.
The Solid Rod Lifting Sockets we produce are CE certified. Many customers will also choose to hire SGS, or TUV for factory inspection.
You can get free samples to check whether they can meet the requirements.Get Free Samples -
Solid Rod Lifting Sockets With Shorter Lead Time:
Advanced Production Equipment:
We have advanced CNC processing equipment, which can complete drilling and tapping faster. Solid Rod Lifting Sockets are more productive.
Experienced Production Team:
Our production team can better operate the production equipment and do maintenance work to provide a guarantee for more efficient and continuous production of orders.
Strict Production Process:
We will fully understand your needs and develop a complete production solution based on this. It will make the production process more reasonable and allow orders to be completed faster based on ensuring the quality of Solid Rod Lifting Sockets.
Thoughtful Freight Service:
Our freight team provides you with free consulting services to help you find a better freight company. Orders can get to you faster.
You can get a solution with shorter order delivery times and guaranteed quality and quantity.Get Your Free Solution -
Solid Rod Lifting Sockets For Better Service:
Dedicated And Professional Customer Service Team:
You will enjoy exclusive service at HULK Metal. We will set up a dedicated service team to provide customized services according to your situation.
24/7 Service:
Our service team is at your service on 18/7. You can contact them anytime. They will solve the problem for you the first time.
Tracking and Feedback:
They will also track the production of the order throughout the process and provide you with various forms of feedback. Even if you don't come to China, you can keep track of the order production status at any time.
Quality Assurance Services:
Our quality assurance service allows you to buy Solid Rod Lifting Sockets hassle-free because any quality problem will be treated most seriously and solved most effectively in HULK Metal.
You can benefit from the comprehensive services of a dedicated client team.Contact Your Dedicated Service Team -
Cost-controllable Solid Rod Lifting Sockets:
Higher Quality And Controllable Cost:
We will control the production cost of the order to meet your requirements on the premise of ensuring the quality of Solid Rod Lifting Sockets. Our production and service capabilities are sufficient to allow us to do this.
Comprehensive Cost Control:
We have a complete supply chain and can optimize the process from every aspect to control the cost. You can spend less time choosing suppliers, buy more cost-effective Solid Rod Lifting Sockets, receive goods faster while the quality meets your requirements, etc.
Shape Your Brand Image:
Higher standard Solid Rod Lifting Sockets, faster delivery, and better service support can provide strong support for you to build a better brand image. You can make a request and we will do our best to accommodate it.
You can leave a request and get a more suitable quotation.Get a Better Quotation
Procurement Process
-
01In-depth understanding of your requirement.
-
02In-depth understanding of your requirement.
-
03In-depth understanding of your requirement.
-
04In-depth understanding of your requirement.
-
05In-depth understanding of your requirement.
-
09In-depth understanding of your requirement.
-
08In-depth understanding of your requirement.
-
07In-depth understanding of your requirement.
-
06In-depth understanding of your requirement.
Other Lifting Sockets You Might Want to Know
Besides Solid Rod Lifting Sockets, we also offer Flat End Lifting Sockets, tubular lifting sockets, Lifting Loops, Solid Rod Lifting Sockets, and other lifting sockets. You can click on the corresponding picture for details. We will provide you with a full range of production services, and you can rest assured to place your order with us.
