Two Hole Spread Anchor

Features of Two Hole Spread Anchor:

• Higher Quality Two Hole Spread Anchor:

  Product Introduction of Two Hole Spread Anchor For Precast Concrete



  The Two Hole Spread Anchor is a versatile lifting and erection solution widely used in precast concrete construction. Its distinctive two-hole, flat-base design allows the anchor to perform effectively even in thin concrete sections, slabs, and wall panels where space for embedment is limited. For demanding structural conditions, the anchor can be combined with additional reinforcement through the extra holes, improving load distribution and overall lifting stability.This type of anchor is commonly applied in precast columns, beams, wall panels, trusses, and double T slabs, supporting both horizontal and vertical handling during production, transportation, and installation.




  Thanks to its adaptable design, it is also known across the industry by various names, including two hole anchor, spread anchor, erection anchor, sandwich panel anchor, and plate ring anchor. Regardless of terminology, the two hole spread anchor delivers dependable performance, flexibility in reinforcement detailing, and safe handling for a wide range of precast elements.



  MATERIAL:20Mn2 / Q345D / CM490 / Stainless Steel / Customizable

  SURFACE TREATMENT:Raw Color / Electro-galvanized / Hot-dip Galvanized

  SAFETY FACTOR:≥ 3

  CERTIFICATE:ISO9001 / CE




  Related products:



  Lifting Ring Clutch




  The lifting ring clutch provides quick, secure engagement with two hole spread anchors, enabling safe load transfer, flexible lifting angles, and efficient handling of precast concrete elements on construction sites.



  Rubber Recess Former



  The rubber recess former creates a clean, accurate recess for anchors, protecting threads during casting and ensuring easy clutch connection and consistent surface finish after demolding.




  You can get free samples to check whether they can meet the requirements.

  Get Free Samples
• Two Hole Spread Anchor with Shorter Lead Time:

  How to Produce Two-Hole Spread Anchors?



  The production of two-hole spread anchors follows a controlled and efficient manufacturing process to ensure their strength, precision, and reliability.



  Material Preparation and Cutting



  High-quality steel is selected and precisely cut to specified dimensions using laser cutting, ensuring consistent size and weight for each anchor.



  Shaping and Bending



  The cut components are bent into the required shape. We measure and confirm dimensions multiple times during this process to ensure consistency in the dimensions of each two-hole spread anchor.



  Surface Treatment



  After shaping, the two-hole spread anchor undergoes surface treatments such as galvanizing or a protective coating to improve its corrosion resistance and extend its service life in harsh construction environments.



  Inspection and Testing



  Each anchor undergoes dimensional checks and mechanical property tests before delivery to confirm its compliance with safety and performance requirements.




  How the Two Hole Anchor Functions



  The two hole anchor is cast directly into the concrete element during production. A rubber recess former is used to create an accurate cavity that allows smooth engagement with the lifting ring clutch after demolding. One hole is designed for direct connection to the clutch, providing a reliable lifting point, while the additional hole enables reinforcement bars to pass through the anchor. This configuration helps spread lifting forces more evenly within the concrete, improving structural stability during handling. With a minimum 3:1 safety factor, the system delivers dependable performance and meets strict construction safety expectations.

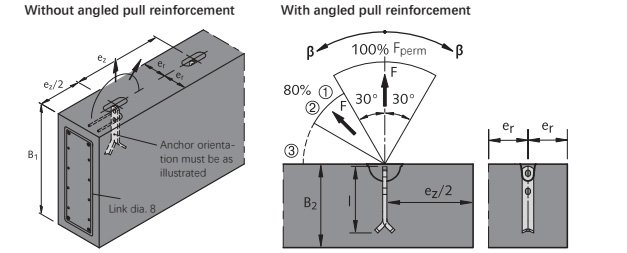

  ① Angled pull at 30° < β ≤ 60°

  without angled pull reinforcement only

  permissible when:

  βW ≥ 15 N/mm2

   + 3-fold min.

  thickness of unit

  βW ≥ 25 N/mm2

   + 2,5-fold min.

  thickness of unit

  βW ≥ 35 N/mm2

   + 2-fold min.

  Thickness of Unit

  (minimum thickness of unit: e = 2×er

  )

  ② Where concrete strength βW ≥ 23

  N/mm2

   Fperm can be taken as 100%.

  ③ Angle of β > 60° due to cable

  spread are impermissible!
