Everything You Need to Know About Spread Anchor System

In today's precast construction industry, speed, safety, and precision are non-negotiable requirements. From concrete pouring to lifting and installation, every stage must be optimized to ensure projects are completed on time and within budget. The spread anchor system is one of the key innovations that meets this demand. This system combines spread anchors with lifting ring clutches and rubber recess formers, providing safety, ease of use, and long-term reliability.

In this article, we delve into how these three elements work, their combined advantages, and how construction contractors can maximize efficiency while ensuring structural safety.

Understanding the spread Anchor System

The spread anchor system is a lifting solution designed to securely attach precast concrete components to lifting equipment. Unlike traditional threaded or welded lifting points, the spread anchor system is carefully designed to effectively distribute loads, reduce stress concentrations, and minimize risks during lifting.

Key features include:

Load capacities range from less than one ton to over twenty tons.

A safety factor of typically three times the working load ensures redundancy in demanding conditions.

A variety of models are available, including Two Hole Spread Anchor, Erection Anchor, Unilateral Erection Anchor, Flat Foot Spread Anchor, Plate Spread Anchor, and Plate Spread Anchor, each suited for specific applications.

Two Hole Spread Anchor

Two parallel anchor legs connected by a central plate, ensuring balanced load distribution and high stability during lifting operations.

Erection Anchor

Designed for vertical precast elements, features extended legs and a robust head for secure connection and precise alignment.

Unilateral Erection Anchor

Single-sided leg configuration allows lifting from one direction, which is ideal for walls or asymmetric precast components.

Flat Foot Spread Anchor

Wide, flat base improves concrete embedment and distributes lifting loads evenly, reducing stress concentrations.

Plate Spread Anchor

Flat plate with multiple attachment points enhances load stability, suitable for heavy precast slabs or panels.

Plate Spread Anchor

Reinforced flat plate design ensures uniform stress distribution, accommodates larger lifting ring clutches for high-capacity lifts.

Durable materials include high-strength carbon steel, alloy steel, and stainless steel, often galvanized or coated for corrosion resistance.

Spread anchors are designed to be embedded in the concrete before curing, ensuring seamless integration and eliminating the need for post-installation drilling or welding.

Spread anchors are CE-certified for safety and reliability.

The Role of Rubber Recess Formers

Rubber recess formers play a vital role in the precast process. Their primary function is to create a precise groove or cavity around the spread anchor head during pouring. Once the concrete has cured, the formers can be removed, leaving behind perfectly formed grooves to ensure:

Secure clutch engagement – The lifting ring clutch can be precisely connected without slipping.

Time savings – No manual drilling or adjustment of the anchor head is required.

Structural integrity – Prevents cracking or chipping of the concrete during demolding.

Reusability – High-quality rubber recess formers withstand repeated pouring cycles without deformation.

For construction contractors, this means fewer installation errors, faster cycle times, and lower costs.

The Importance of the Lifting Ring Clutch

Once the spread anchor emerges from the recess former, the lifting ring clutch becomes the critical connection point between the embedded anchor bolt and the lifting machinery. Designed for repeated use, this ring clutch ensures:

Safe load transfer—its locking mechanism prevents accidental disengagement.

Visual confirmation—clear markings assure the operator that the system is properly engaged.

High durability—constructed from forged alloy steel, it withstands repeated lifting cycles without fatigue.

Flexibility—designed to handle loads from multiple angles, including vertical, diagonal, and horizontal tension.

The ring clutch not only improves safety but also simplifies on-site operations, allowing workers to focus on positioning and alignment rather than troubleshooting the lifting equipment.

How the Three Components Work Together

The true value of the spread anchor system is revealed when the three components (spread anchor, rubber recess former, and lifting ring clutch) are used as an integrated solution.

Precasting Phase

The spread anchor is carefully positioned within the mold prior to concrete pouring to ensure precise alignment and optimal load distribution. The rubber recess former is then securely fixed in place, creating a defined cavity around the anchor head.

Pouring and Curing

High-quality concrete is poured into the mold, fully embedding the spread anchor while maintaining its exact orientation. The rubber recess former protects the anchor head and preserves a clean, accurately shaped clutch recess, facilitating effortless installation once the concrete has cured.

Removing the formwork sections

Before lifting the precast concrete unit, as many sections of the formwork as possible should be removed in order to minimize adhesion to the formwork. Inadequate stripping is the most common cause of flaking of the precast concrete unit or of anchor failure. The forces acting on the lifting system may be several times the actual weight of the precast unit.

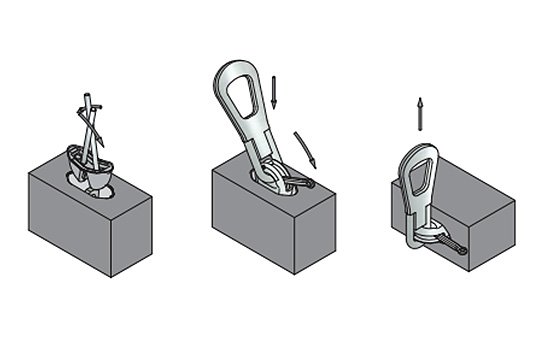

Removing the recess formers

To strip the recess former, two rods are inserted in the holes in the recess former, which is then levered out by scissors action. This technique will guarantee a long lifetime for the recess former. Attempting to remove the recess former using the tip of a carpenter’s hammer will destroy it.

Fitting the ring clutch

To transport an element, insert the suitable ring clutch for the load group over the anchor head in the concrete recess. The load ranges are foolproof.

Locking the ring clutch

Securely lock the ring clutch with a straightforward hand-operated movement of the locking bolt. The resulting connection is secure, allowing the ring clutch to move freely in any direction. The precast element can now be safely lifted out of the formwork and transported to its storage location.

Assembly

A primary advantage of the HULK Metal Rapid Lift System is that the slinging devices (ringes) remain attached to the crane hook and do not need to be transported by clutch hand. The ring clutch can be released manually by pushing back the locking bolt once the device is offloaded.

Tilting slabs without tilting the table

The HULK Metal A ring clutch can be used to move flat-manufactured precast units from a horizontal to a vertical position. The pull direction is at right angles to the built-in anchor. To avoid flaking the concrete, the erection anchor should be properly embedded in the unit.

Spread Anchors Using Process

The use of cross-beams when lifting is recommended to avoid torsional forces.

This installation process offers speed, safety, and accuracy—qualities unmatched by traditional lifting systems.

Advantages Compared to Other Lifting Products

The spread anchor system offers numerous advantages over traditional lifting methods, such as threaded sleeves or welded plates:

Quicker installation—No drilling, welding, or threading required.

Reduces errors—Anchors are pre-positioned using prefabricated molds, ensuring accuracy.

Higher safety margin—The legs of the spread anchor distribute force more evenly.

Multi-directional load-bearing capacity—Supports tilted lifting without compromising safety.

Enhanced Durability – Coated anchors resist corrosion and damage even in harsh environments.

For contractors managing complex projects such as precast bridges, tunnels, and large building elements, these advantages translate directly into shorter construction times and lower costs.

Typical Applications

The Versatility of Expanded Anchors

The system is suitable for a variety of precast elements, including:

Wall panels – Ensure precise handling without edge damage.

Columns and beams – Allow for safe vertical and inclined lifting.

Foundations and slabs – Distribute heavy loads without stressing the concrete.

L-shaped walls and retaining wall segments – Simplify positioning and installation.

Infrastructure elements – Bridges, tunnels, and culverts benefit from efficient lifting cycles.

By adjusting anchor size and grapple capacity, the system can handle a wide range of elements, from lightweight wall panels to extremely heavy structural members.

Safety Considerations

Safety remains a core reason for choosing an expanded anchor system. To maximize safety:

Always match the anchor type to the load requirements.

Use appropriate groove formers to ensure precise installation.

Inspect the lifting hook regularly for wear or deformation.

Follow the manufacturer's certified load tables.

Maintain a safety factor of at least three times the working load.

Through these practices, the likelihood of accidents or component failure can be significantly reduced.

Material Selection and Surface Treatment

The long-term performance of expansion anchors depends largely on the material and surface treatment:

Carbon steel (20Mn2, Q345D) – A common choice for standard applications.

Alloy steel (CM490, 40Cr) – Provides higher strength to withstand high loads.

Stainless steel (304, 316) – Suitable for marine or highly corrosive environments.

Surface Treatment – Available materials include hot-dip galvanizing, electroplating, or black oxide treatment for enhanced corrosion resistance.

This flexibility in materials and surface treatments allows contractors to tailor solutions to the specific needs of the environment and project.

Certification and Quality Assurance

Modern construction requires compliance with international standards. Leading manufacturers like HULK Metal ensure:

ISO 9001 certified production

CE, TUV, and SGS testing to ensure load capacity and material quality

Full traceability through batch numbers and inspection reports

Strict tensile testing to ensure safety margins

These certifications give contractors peace of mind, knowing their lifting systems meet global safety standards.

Why Choose HULK Metal as Your Partner

When sourcing a spread anchor system, not all suppliers offer the same reliability. HULK Metal stands out with the following advantages:

Comprehensive solutions—spread anchors, rubber recess formers, and lifting ring clutches all sourced from a single supplier.

Advanced manufacturing processes—forging, CNC machining, heat treatment, and finishing are all performed in-house.

Strict quality control—each batch is tested for tensile strength, dimensional accuracy, and surface finish before shipment.

Global logistics support—flexible shipping options ensure on-time delivery.

Responsive service—technical consultation, samples, and after-sales support are available.

By choosing a trusted supplier, contractors can avoid costly project delays and ensure safe, efficient, and hassle-free lifting operations on site.

The spread anchor system, combined with rubber recess formers and lifting ring clutches, is more than just a technical solution; it's a complete lifting strategy that can provide safety, efficiency, and reliability for precast construction.

From precise positioning during casting to easy on-site installation, this system eliminates unnecessary risks while accelerating workflow. For contractors determined to meet the challenges of modern construction, adopting this integrated solution is no longer a nice-to-have; it's essential.

HULK Metal offers certified, high-quality spread anchors, recess formers, and ring clutches, backed by rigorous quality assurance and global logistics support. By partnering with a trusted supplier, you can be sure your precast elements will be safely installed, efficiently erected, and backed by long-term expertise.
