Five Lifting Clutches for Precast Concrete Systems

In modern precast concrete construction, lifting operations must balance safety, accuracy, and speed. As precast components become larger, thinner, and more complex, the demand for secure load-handling systems has increased dramatically. At the center of every safe lifting operation lies a key device—the lifting clutch.

A lifting clutch forms the secure, mechanical link between embedded lifting anchors and the crane’s rigging equipment. These clutches ensure reliable engagement, controlled force transfer, and safe release once the element reaches its position. Without the right clutch-anchor combination, even minor lifting tasks can pose severe risks to workers, equipment, and concrete integrity.

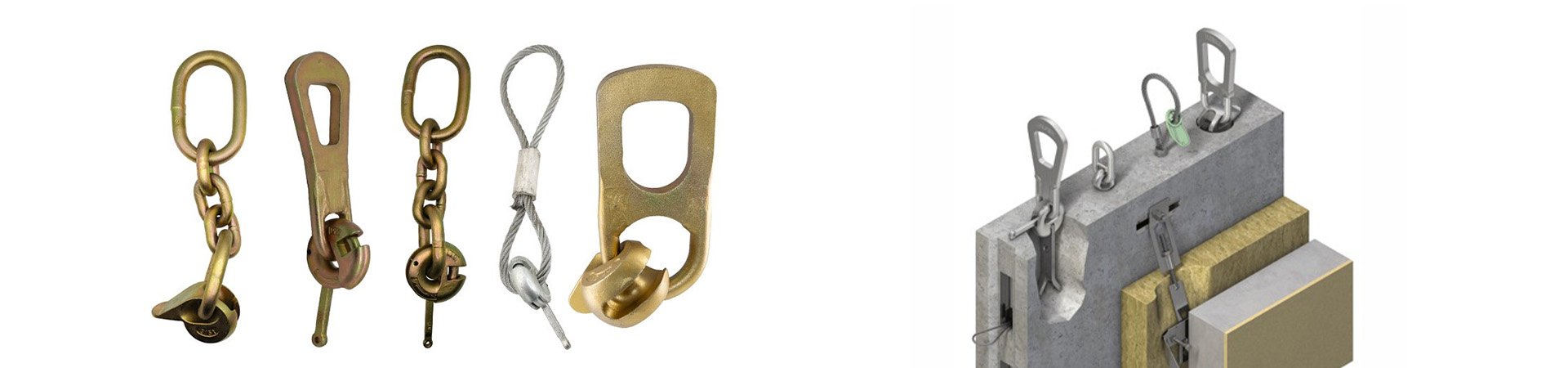

Today’s precast industry uses a range of lifting clutches, each engineered for specific anchor types, load requirements, and environmental demands. This guide explores five widely used systems:

Spherical Head Lifting Clutch (Dog Bone Lifting Eyes)

Dog Bone Lifting Eye With Chain

Lifting Ring Clutch

Concrete Panel Lifting Ring Clutches

Cable Ring Clutch Wire Rope

These devices play indispensable roles in producing, transporting, tilting, and installing precast components across buildings, civil infrastructure, and industrial applications.

Spherical Head Lifting Clutch (Dog Bone Lifting Eyes): Structure, Applications, and Operation

Among all clutch systems, the Spherical Head Lifting Clutch, commonly known as Dog Bone Lifting Eyes, is one of the most trusted tools for heavy-duty precast lifting.

Design & Components

This clutch is engineered to interface perfectly with Spherical Head Lifting Anchors, ensuring a strong, secure connection. Its structure includes:

A spherical head for engaging the anchor cavity

A forged steel ring for rigging

A welded handle for easy operation

Safety ears designed to lock the clutch into position

The entire assembly is fully welded, delivering exceptional strength and long-term resistance to wear.

Application

This clutch system is used exclusively with spherical head anchors and is suitable for:

Beams

Columns

Foundation elements

Dense or thick precast components requiring high load capacity

Key Performance Features

Safety factor ≥ 5:1, meeting international precast standards

Non-modifiable design—any alteration voids CE certification

No strict service life limit, but recommended replacement after defined load cycles

Operational Workflow

Coupling:

Inspect visually, align the clutch with the anchor groove, and secure it by pushing the safety ears forward.

Lifting:

The clutch supports vertical and horizontal anchor positions and allows lifting angles up to 90°. However, prohibited lifting directions must be avoided to prevent concrete cracking or anchor deformation.

Release:

Only disengage after the load is fully supported elsewhere. The operator retracts the safety ears and removes the clutch for storage.

III. Dog Bone Lifting Eye With Chain: Enhanced Flexibility for Complex Lifting Paths

Some jobsite environments require greater maneuverability than a rigid steel clutch can provide. The Dog Bone Lifting Eye With Chain responds to this challenge with its hybrid design.

Structural Features

A Dog Bone-style head

A certified alloy steel lifting chain

High-strength connecting rings

Applications

This clutch is ideal for:

Sites with limited crane access

Multi-angle lifting paths

Suspended loads requiring additional reach

Non-linear lifting movements

Advantages

Chain flexibility enables smooth movement in confined areas

Reduced shock-loading due to chain elasticity

Enhanced operator control for delicate positioning tasks

Concrete Panel Lifting Ring Clutches: Built for Large and Thin Concrete Panels

For architectural or structural wall panels—especially thin or wide-span components—Concrete Panel Lifting Ring Clutches offer unmatched stability and control.

Design Advantages

Larger diameter rings compatible with panel lifting hooks

Reinforced locking mechanism for large-format panels

Smooth rotation control for safe tilt-up operations

Ideal Applications

Large wall panels

Façade cladding

Tilt-up construction

Architectural concrete panels with reduced thickness

Performance Strengths

These clutches maintain reliable engagement even during:

High-angle lifts

Sudden motion loads

Horizontal-to-vertical rotation

Long-distance transportation vibrations

They also reduce stress concentration on thin concrete edges, protecting the panel’s structural integrity throughout its movement.

Lifting Ring Clutch: A Flexible and Durable Solution for Spread Anchors

The Lifting Ring Clutch is one of the most versatile clutch systems used with a wide range of Spread Anchors, such as erection anchors and two-hole spread anchors.

Design & Components

This clutch features:

Precision-cast head

Hot-forged locking bolt

Heavy-duty lifting ring

Robust stamped handle

Riveted and welded connections for durability

Anchor Compatibility

It connects with spread anchors by inserting a locking bolt through the anchor’s cast hole.

Critical Specification Requirements

To ensure safety and proper engagement:

Bolt diameter must match the anchor hole

Head opening must be compatible with the anchor plate thickness

Load group must be precisely matched

A mismatch can lead to bolt bending or unsafe load transfer.

Operation Workflow

Coupling

Inspect the clutch and anchor, insert the anchor head, then slide the locking bolt through the anchor.

Lifting

The system allows flexible angular movement but should remain within 60° of the vertical axis for optimal load distribution.

If the shackle becomes misaligned, operators can rotate it ~45° to correct the angle and avoid jamming.

Release

Once the load is fully removed, retract the bolt manually and store the clutch separately from anchors to avoid accidental re-engagement.

Cable Ring Clutch Wire Rope: A Lightweight Solution for Confined or Curved Elements

The Cable Ring Clutch Wire Rope offers maximum flexibility in scenarios where space is limited or where the precast element has curved or irregular geometry.

Design Features

A durable wire rope ring

A machined steel clutch head

Lightweight construction for easy handling

Best Use Cases

Lightweight concrete components

Vaults or curved panels

Small architectural precast units

Elements requiring soft engagement without rigid force transfer

Key Benefits

Easy alignment thanks to rope flexibility

Resistance to bending fatigue, ideal for repetitive-use environments

Quick attachment and release without heavy tools

Shared Engineering Standards Across All Lifting Clutches

Regardless of clutch type, every HULK Metal lifting clutch is engineered under strict structural and safety standards.

Advanced Materials

High-strength steels ensure superior performance:

Q345D / Q355D — robust and cost-effective

CM490 / G30CrMoV — for high-load industrial applications

Customized material grades available upon request

Certification & Testing

All clutches are CE-certified

Minimum 5:1 safety factor maintained at all times

Tensile, shear, and fatigue testing for every batch

Surface Treatment Options

Hot-dip galvanizing: Best for corrosion resistance, marine environments, and long-term outdoor exposure

Electroplating: Smooth finish, cost-efficient, ideal for indoor or aesthetic applications

No powder coating due to low adhesion and inferior durability

Safety Requirements

Annual inspection by trained personnel

Immediate removal from service if:

Locking bolt is worn or bent

Clutch head is enlarged or deformed

Welds show cracking

Excessive corrosion is visible

These standards guarantee dependable performance across various climate zones and lifting environments.

Why Choose HULK Metal’s Lifting Clutches?

Integration with the Rapid Lift System

HULK Metal’s ring clutches work seamlessly with our Rapid Lift System, enabling:

Clutches to remain on the crane hook permanently

Faster lifting cycles

Reduced labor involvement in transporting clutches

Engineered for Real-World Challenges

Our clutches perform reliably in:

Horizontal-to-vertical tilt-up operations

Slab rotation without tilt tables

Heavy torsional loads via integrated cross-beam control

Edge protection scenarios where concrete margins are delicate

From OEM to Full Project Solutions

With complete control over raw materials, forging, machining, testing, and assembly, HULK Metal delivers:

Custom load groups

Specialized geometries

Private-label solutions

Technical design support for engineering teams

Lifting clutches are indispensable components in safe and efficient precast concrete handling. From spherical head lifting systems to flexible wire rope clutches, each design offers unique advantages based on load requirements, anchor type, and site conditions.

HULK Metal integrates precision engineering, certified safety standards, and advanced manufacturing to deliver lifting clutches that meet the highest expectations of architects, engineers, and construction professionals.

For detailed load charts, compatibility tables, CAD files, and inspection guidelines, request the full HULK Metal Lifting Systems Catalog today.

Contact HULK Metal for technical consultation, OEM support, or bulk procurement to elevate your precast lifting operations with certified, reliable, and high-performance solutions.
