Why Bolt Anchor Lifting Sockets Are Critical in Precast Concrete Construction?

Overview of Bolt Anchor Lifting Sockets

Bolt Anchor Lifting Sockets are specially designed lifting devices embedded in precast concrete elements to provide a secure lifting point during transportation, positioning, and installation. These anchors are particularly suited for flat components such as panels and slabs, where the lifting socket is installed on the top face of the component. Their compact, efficient design makes them an ideal solution when retention reinforcement is not feasible or desired.

Unlike other lifting systems that may require complex reinforcement or additional accessories, Bolt Anchor Lifting Sockets simplify the installation process by integrating directly into the concrete structure. Their performance is based on the effective transmission of loads through the bolt head, which ensures that the lifting forces are safely managed during erection.

These sockets are widely adopted in the precast concrete industry, as they meet the dual requirements of safety and efficiency. The versatility and availability of different thread sizes—from Rd12 to Rd30—allow for a broad range of load capacities, catering to different structural needs.

Key Design Features and Load Capabilities

Functional Mechanism

Bolt Anchor Lifting Sockets work by embedding the socket into the concrete and securing it with a bolt head that acts as a load-transfer mechanism. During lifting, the applied forces are safely transferred from the lifting clutch to the bolt head, which then distributes the load into the surrounding concrete mass. This top-sided installation method simplifies access and enhances overall safety on-site.

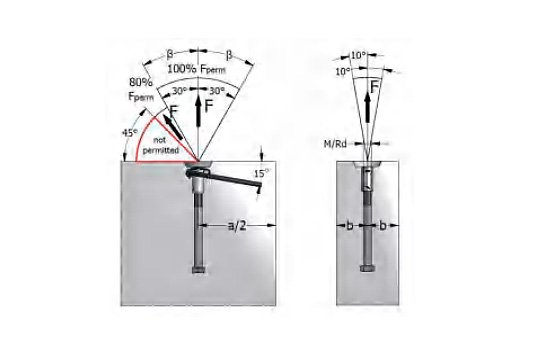

Load Directions and Capacity

Bolt Anchor Lifting Sockets are capable of handling both tensile and shear loads. They can resist vertical tensile loads efficiently and tolerate shear loads applied at angles up to 45 degrees. For shear angles (β) greater than 10°, additional reinforcement is recommended to maintain structural integrity and safety.

Typical load capacities correspond with thread sizes ranging from Rd12 to Rd30, making these anchors suitable for small to medium-weight components. For structures demanding higher load capacities, the Allround Anchor Short is suggested as a viable alternative. It uses a similar anchoring mechanism but is designed for greater strength.

Compatible Component Types

Application Scope of Bolt Anchor Lifting Sockets

Bolt Anchor Lifting Sockets demonstrate exceptional versatility across a wide range of precast concrete components, making them an indispensable asset in modern construction projects. Their design and load-bearing performance are especially well-suited for use in:

Flat Concrete Panels

Widely used in modular buildings, commercial facades, and partition systems, flat panels benefit from the top-mounted design of Bolt Anchors, which simplifies lifting and placement without compromising structural integrity.

Precast Foundations

In infrastructure and industrial developments, precast foundation elements require reliable lifting systems that maintain positional accuracy and stability during transport. Bolt Anchor Lifting Sockets offer the secure anchorage needed for such heavy-duty applications.

L-Wall Segments

These components, often used in retaining walls and boundary systems, have complex load-bearing geometries that demand secure and predictable lifting methods. Bolt Anchors ensure that L-wall units can be lifted, rotated, and installed with precision.

Cable-Supported Structures

Lightweight and load-sensitive concrete elements used in cable-stayed or tension-supported systems benefit from the precise alignment and minimal intrusion that Bolt Anchor Lifting Sockets provide during erection.

The top-mounted installation of Bolt Anchor Lifting Sockets significantly enhances site efficiency and operational safety. Because the socket is installed on the top face of the component, workers can easily access and attach lifting clutches or hooks without needing to maneuver around the element or flip it into a new orientation. This not only reduces the time and labor involved in lifting preparations but also minimizes the risk of accidents, material damage, or misalignment during transport and placement.

Available Versions and Corrosion Resistance

HULK Metal provides two material variants to cater to different project environments and durability expectations:

Galvanized Steel Version

This is the standard model designed for use in normal indoor or controlled outdoor conditions. The zinc coating protects against mild environmental exposure, making it a cost-effective solution for general precast applications.

Stainless Steel Version

For projects exposed to aggressive environments—such as coastal areas, chemical plants, or locations with high humidity—the stainless steel variant offers superior corrosion resistance. This ensures longer service life and maintains safety standards even under challenging conditions.

Thread Sizes and Load Range

Available in thread sizes Rd12, Rd16, Rd20, Rd24, and Rd30, each size corresponds to a different load category. Engineers must select the appropriate thread size based on the component weight, expected loading angles, and applicable safety factors.

Certification and Compliance

All variants are manufactured in compliance with VDI/BV-BS 6205 and the EC Machinery Directive. Products are CE-marked to affirm adherence to safety and performance standards in European markets.

Applications in Precast Construction

The versatility and safety of Bolt Anchor Lifting Sockets make them an essential solution across various precast construction scenarios. Common application areas include:

Precast Production Facilities

In factory settings, where consistent quality and repeatable processes are essential, Bolt Anchor Lifting Sockets provide a reliable and easy-to-use lifting solution. Their top-face installation allows workers to quickly position lifting gear without rotating or tilting heavy components.

On-Site Installation

On construction sites, time is a critical factor. Bolt Anchor Lifting Sockets help minimize installation time by simplifying attachment and detachment of lifting equipment. Their predictable behavior under load improves site safety during panel or wall placement.

Case Examples

Wall and slab lifting during modular building assembly

Transportation of foundation segments for infrastructure projects

Positioning of L-wall structures in retaining wall applications

Lifting precast cable support structures in utility installations

Why HULK Metal is the Right Choice

Choosing the right manufacturer is as important as selecting the correct lifting solution. HULK Metal stands out in the industry for its commitment to quality, customization, and customer support.

Certified Quality Assurance

All Bolt Anchor Lifting Sockets by HULK Metal are CE-certified and manufactured in accordance with international standards. Each production batch undergoes rigorous testing and traceability protocols to ensure reliability and safety.

Technical Support & Customization

HULK Metal provides expert guidance during planning and project execution. Our engineering team helps select the most suitable anchor type, size, and version for your specific application. We also offer customized solutions for projects with unique designs or environmental challenges.

End-to-End Supply Chain Management

With an integrated supply chain that covers raw material sourcing, forging, machining, surface treatment, and packaging, HULK Metal ensures timely delivery and consistent product quality. This comprehensive approach reduces risk and guarantees performance.

Comprehensive After-Sales Service

HULK Metal’s support does not end with product delivery. Our team is available to assist with installation guidance, technical documentation, performance feedback, and rapid replacement solutions if required.

Bolt Anchor Lifting Sockets are a safe, efficient, and cost-effective solution for lifting precast concrete components, especially flat panels and similar elements where top-sided installation is required. Their versatility in handling both tensile and angled shear loads makes them indispensable in modern precast construction.

In addition to Bolt Anchor Lifting Sockets, HULK Metal produces various types of lifting sockets, such as flat end lifting socket, solid rod lifting socket, crown foot lifting anchor, wavy lifting socket, combi lifting socket, tubular lifting sockets, and lifting loops.

HULK Metal brings extensive manufacturing experience, robust technical support, and a commitment to quality that ensures each lifting socket performs as expected. From standard galvanized options to corrosion-resistant stainless steel variants, our product range is designed to meet the diverse needs of engineers and contractors worldwide.

If you're planning a precast project and need a reliable lifting solution, don't hesitate to reach out to HULK Metal. Our team is ready to assist you with:

Free product consultation

Engineering support for load calculations

Technical documentation

Custom product development

Contact us today to request a free quote, product samples,. Let's build better, safer, and faster—together.
