Precast Concrete Plate Anchor

Features of Precast Concrete Plate Anchor:

• Higher Quality Precast Concrete Plate Anchor:

  What is Precast Concrete Plate Anchor？




  HULK Metal's precast concrete plate anchors are primarily used for lifting concrete blocks. When used with a recess rubber former and lifting ring clutch, they make precast concrete installation safer and faster.



  Each plate anchor is laser cut and precision welded, ensuring precise clutch alignment for fast connection and saving time on site. These anchors feature a square base plate that evenly distributes load, reducing stress on  thin-walled plates and ensuring stability during edge lifting or rotation. Reinforced steel reinforces pullout resistance, making them suitable for shallow embedment and various lifting orientations.



  We also offer customizable sizes and plate types for bulk orders, helping contractors reduce installation costs and streamline their workflow. With a high safety margin, CE certification, and a corrosion-resistant finish, HULK Metal's precast concrete plate anchors offer long-term durability and unmatched value for large precast concrete projects. Contact our team today for a better price.




  How to use?

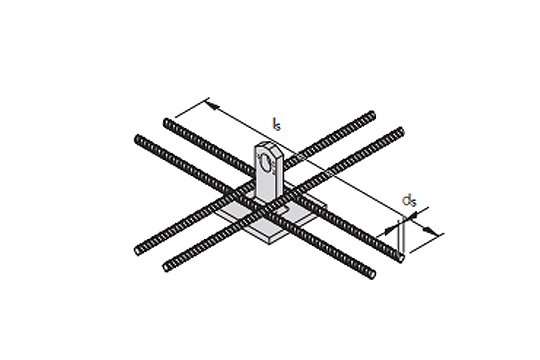

  It's welded together in two sections, with a single hole at the head for attaching the recess former and lifting clutch. A square steel plate is welded to the rear and embedded in the concrete. Four rebars are typically used to press the plate together during installation.






  Yield strength: 500 N/mm2 ,  tensile strength: 550 N/mm2

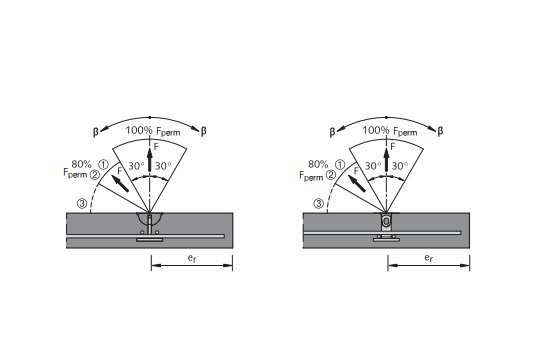

  ① .Angled pull at 30° < β ≤ 60°

  without angled pull reinforcement

  only permissible when:

  βW ≥ 15 N/mm2  + 3-fold min.

  thickness of unit

  βW ≥ 25 N/mm2  + 2.5-fold min.

  thickness of unit

  βW ≥ 35 N/mm2  + 2-fold min.

  thickness of unit

  ② .Where concrete strength βW ≥ 23 N/mm2

  Fperm can be taken  as 100%.

  ③ .Angle of β > 60° due to cable  spread

  are impermissible!










  You can get free samples to check whether they can meet the requirements.

  Get Free Samples
• Produce of Precast Concrete Plate Anchor:

   Precast Concrete Plate Anchor Production Process



  Raw Material Selection



  The process begins with choosing high-quality steel materials such as 20Mn2, Q345D, or stainless steel, depending on the project requirements. Raw materials are strictly inspected for mechanical properties, including tensile strength, toughness, and chemical composition.



  Cutting and Shaping



  Steel plates and bars are cut into the required dimensions using laser cutting equipment. This ensures precise sizing and minimizes material waste. The anchor head and plate are shaped to meet design specifications.



  Welding Assembly



  The steel plate and anchor head are connected through precision welding. skilled manual welders ensure strong joints, correct positioning, and alignment for the clutch connection hole.



  Surface Treatment



  Anchors undergo finishing processes such as electro-galvanizing, hot-dip galvanizing, or left raw, depending on the environment where they will be used. These coatings protect against corrosion and extend service life in outdoor or harsh conditions.



  Quality Control & Testing



  Each batch is tested to verify load capacity, welding strength, and dimensional accuracy. Anchors are required to pass a 3-fold safety factor test and meet ISO9001 and CE certification standards.



  Packaging & Delivery



  Finished anchors are carefully packed in pallets or steel boxes to prevent damage during transport. Clear labels with dimensions and codes make selection easy for contractors.




  You can get a solution with shorter order delivery times and guaranteed quality and quantity.

  Get Your Free Solution
• Precast Concrete Plate Anchor with Better Service:

  High Quality Plate Anchor




  HULK Metal provides precast concrete plate anchors manufactured from premium-grade steel with precision welding and strict dimensional control. Each anchor is engineered for high load capacity, corrosion resistance, and reliable performance in demanding construction environments.




  Quality Assurance Services




  Every plate anchor undergoes strict inspection, including load tests and welding checks, and complies with ISO9001 and CE certifications. This ensures each product meets international standards and performs reliably on-site.




  24/7 Service




  Our professional support team is available around the clock to answer technical questions, provide quick quotations, and guide you in choosing the right anchor solution for your project needs.




  You can benefit from the comprehensive services of a dedicated client team.

  Contact Your Dedicated Service Team
• Cost-controllable Precast Concrete Plate Anchor:

  Extensive Experience & Expert Team




  With years of precast concrete accessories expertise, HULK Metal’s professional team—including procurement, technical, production, quality control, and after-sales specialists—ensures every project is executed efficiently and reliably.



  Comprehensive Supply Chain




  Our fully integrated supply chain covers raw material sourcing, manufacturing, quality inspection, packaging, and logistics, guaranteeing on-time delivery while maintaining consistent high-quality standards.



  Custom Solutions




  We provide tailored manufacturing solutions based on client drawings, order quantities, and specific requirements, meeting diverse needs for material, size, and surface treatment in metal components.



  High Quality & Reliable After-Sales




  Every product undergoes strict quality inspection. Should any issues arise in quantity or quality, we offer replacement or return services. ISO9001 and CE certifications ensure safety, reliability, and long-term performance.
