Precast Concrete Double Head Lifting Anchor

Features About Precast Concrete Double Head Lifting Anchor:

• Higher Quality Precast Concrete Double Head Lifting Anchor:

  What’s precast concrete double head lifting anchor?




  A precast Concrete Double Head Lifting Anchor is a forged, high-strength lifting connector used to safely handle precast concrete elements, offering secure load transfer, stable engagement with lifting clutches, and reliable performance across demanding construction and infrastructure projects.



  Introduction



  Material:CM490,20Mn2(1.0473),Q345D(1.0577),Stainless steel 304&316;

  Surface:Plain,Electrical Galvanized(E.Z.),Hot Dip Galvanized(H.D.G.);

  Safety Factor:≥ 3

  Delivery Time:Usually 30 days for one container;




  Advantages

  High Load Capacity

  The forged double-head structure provides excellent load distribution, enabling the anchor to safely handle heavy precast components.



  Enhanced Safety Performance

  With a high safety factor and precise engagement with matching lifting clutches, these anchors significantly reduce the risk of lifting failures.



  Reliable Durability

  Manufactured from high-strength alloy steel and treated for corrosion resistance, they maintain long-term performance even in harsh construction environments.



  Easy and Secure Installation

  The design ensures straightforward placement during concrete casting and offers stable lifting points during on-site handling.



  International Standard Compliance

  Each anchor meets CE and ISO 9001 requirements, ensuring consistent quality, dimensional accuracy, and suitability for global construction projects.



  Versatile Application Range

  Suitable for various precast products such as wall panels, beams, pipes, and slabs, making them highly adaptable across different construction needs.




  You can get free samples to check whether they can meet the requirements.

  Get Free Samples
• Precast Concrete Double Head Lifting Anchor with Shorter Lead Time:

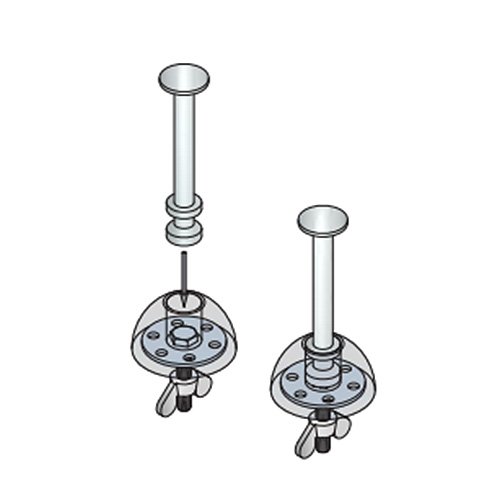

  Double Head Lifting Anchor Instructions and Diagrams

  The load capacity of double-head lifting

  anchors is the same as spherical head

  anchors, and the anchor suits the same

  lifting clutch. But the recess formers of

  double-head lifting anchors are difficult.

  Currently, commonly used recess formers

  are rubidium magnets.

  The difference between Double Head

  Anchor and Spherical Head Anchor is a

  collar below the anchor head. This design

  makes it push into the recess former

  more quickly and can make a seal.




  Assembly is faster, and the former remains on the mold when demolding. This is

  especially beneficial for negative castings like balconies or staircases.

  1.Angled pull at β > 30° without reinforcement for the angled pull is only allowed

  at:

  Concrete strength 15 N/mm² and wall thickness 3 times minimum thickness ez/2

  Concrete strength 25 N/mm² and wall thickness 2.5 times minimum thickness ez/2

  Concrete strength 35 N/mm² and wall thickness 2 times minimum hickness ez/2

  2.At a concrete strength > 23N/mm² FZ = FS.

  3.Angled pull with β > 60° caused by the spread of cables/chains is not permitted




  How We Produce Precast Concrete Double Head Lifting Pin Anchors?




  Raw Material Selection



  We first select high-strength alloy steel from our long-term partner suppliers. All raw materials have material certificates to ensure stable mechanical properties and reliable performance.



  Precision Forging Process



  Each Double Head Lifting Pin Anchor is hot-forged to form a dense and uniform double-head structure with excellent load-bearing capacity.



  CNC Machining and Finishing



  Key dimensions are precision-machined using CNC machining to ensure a precise fit with the lifting clutch. Surface treatment improves corrosion resistance.



  Rigorous Quality Inspection



  Each Double Head Lifting Pin Anchor undergoes tensile testing, hardness testing, and dimensional inspection to meet CE and ISO 9001 requirements.



  Packaging and Transportation



  Finished Double Head Lifting Pin Anchors are securely packaged and transported through an efficient logistics network to ensure safe and timely delivery.




  You can get a solution with shorter order delivery times and guaranteed quality and quantity.

  Get Your Free Solution
• Precast Concrete Double Head Lifting Anchor For Better Service:

  Advanced Forging and Production Capabilities

  HULK Metal operates with precision forging equipment, automated machining lines, and stable production processes that ensure every lifting anchor meets strict mechanical and dimensional requirements.



  Comprehensive Quality Control System



  From raw material inspection to final load testing, every anchor is monitored by a dedicated QC team. HULK Metal performs tensile tests, hardness checks, and surface inspections to guarantee CE- and ISO-compliant quality.



  Reliable Supply Chain and Fast Delivery



  With strong factory resources, well-managed scheduling, and efficient logistics support, HULK Metal ensures stable production capacity and timely delivery—even for large-volume orders.



  Professional Support and After-Sales Service



  HULK Metal offers 24/7 technical assistance, detailed product documentation, and responsive after-sales service, including replacement or replenishment for any quality issues or shortages.




  You can benefit from the comprehensive services of a dedicated client team.

  Contact Your Dedicated Service Team
• Cost-controllable Precast Concrete Double Head Lifting Anchor:

  Higher Quality Precast Concrete Double Head Lifting Anchor:



  Made with strong alloy steel and precise forging, each anchor goes through strict quality checks to ensure safer lifting, stable performance, and long-lasting durability for all types of precast projects.



  Comprehensive Cost Control:




  With well-planned production, reliable material sourcing, and an efficient supply chain, we help lower overall costs while keeping quality high—giving you better project savings and stronger market advantages.



  Shaping Your Brand Image:




  Stable product quality, flexible customization, and professional support help your brand look more reliable, build customer trust, and stand out in the global precast construction market.




  You can leave a request and get a more suitable quotation.

  Get a Better Quotation
