Durable Connection Loop Boxes for Faster and Safer Precast Concrete Projects

The ever-evolving world of modern construction is driving a growing demand for efficient, safe, and durable connection systems. Connection Loop Boxes are widely used in today's precast concrete and structural engineering projects. They provide a reliable method for connecting precast concrete components while ensuring structural stability, ease of installation, and long-term performance. As construction projects become increasingly complex, Connection Loop Boxes have become an essential component for delivering high-quality results.

What are Connection Loop Boxes?

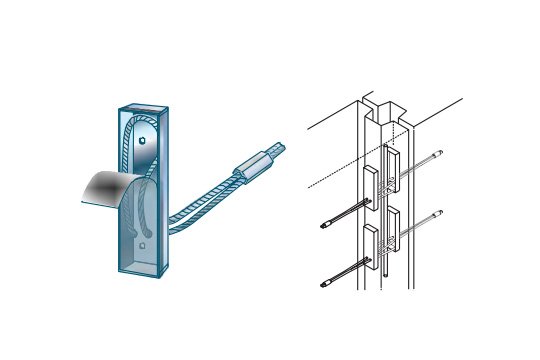

Connection Loop Boxes are prefabricated steel boxes containing flexible steel rings that are then embedded into the concrete element. These rings act as anchors, creating seamless and secure connections between different precast elements, such as walls, slabs, and columns. After installation, the rings protrude from the concrete surface, providing a secure and strong connection point. Installed as a connecting element to transfer the forces of static and quasi-static loads.

The design typically includes:

A steel box that securely holds the rebar rings in place during the concrete pour.

The pre-bent steel rings, made of high-strength steel, ensure flexibility and durability. A removable covering tape or cap protects the rebar loops during the pouring process and can be easily removed on site.

Essentially, Connection Loop Boxes act as pre-installed connection anchors, eliminating the need for complex on-site rebar installation and saving time and effort.

Key Features of Connection Loop Boxes

High-Strength Steel Construction

Constructed from durable, corrosion-resistant steel, Connection Loop Boxes can withstand heavy loads and harsh environmental conditions.

Pre-Embedded Rebar Loops

The rebar loops are pre-formed and ready for immediate use, saving valuable time on site.

Removable Protective Tape

This user-friendly feature securely encloses the rebar loops during transport and concrete pouring, ensuring quick and easy removal when needed.

Versatile Configurations

Available in a variety of sizes, shapes, and load capacities to meet diverse construction needs.

Compliant with International Standards

Designed to meet stringent safety and quality standards, they ensure reliability in critical applications.

Materials of the Connection Loop Box

Compression Sleeve (20# Steel)

The compression sleeve is manufactured from high-quality 20# steel, providing exceptional strength and durability. Its precise engineering ensures the wire loop remains firmly secured, guaranteeing long-lasting structural integrity and reliable performance under demanding load conditions in concrete connections.

Wire Loop (High-Strength Steel Wire Rope SE-Zn)

The wire loop is formed from SE-Zn coated high-strength steel wire rope, offering superior tensile capacity and corrosion resistance. This ensures dependable load transfer between concrete elements, while maintaining flexibility and consistent reliability in both indoor and outdoor structural applications.

Box (Galvanized Sheet)

The box is fabricated from premium galvanized sheet steel, ensuring excellent resistance to rust and environmental damage. It provides robust protection for the embedded wire loop while maintaining dimensional accuracy for seamless integration into precast concrete components during production and installation.

How Connection Loop Boxes Work

The working principle of Connection Loop Boxes is simple and efficient:

Prefabricated Component Pre-Assembly

During the production process of precast concrete components, a steel box with rebar rings is positioned and cast directly into the component.

Storage Until Use

The connection rings are neatly stored inside the box, protected by a removable lid, until needed.

On-site Activation

When connecting two components, the lid is removed and the connection rings are unfolded.

Rebar Connection

Thread the rebar through the connection rings, securely tying them to the other component.

Concrete Casting and Final Bonding

Fresh concrete is poured around the connection, creating a monolithic bond with exceptional strength and stability.

This process ensures efficient assembly while preserving the structural integrity of the final building.

Connection Loop Boxes Installation:

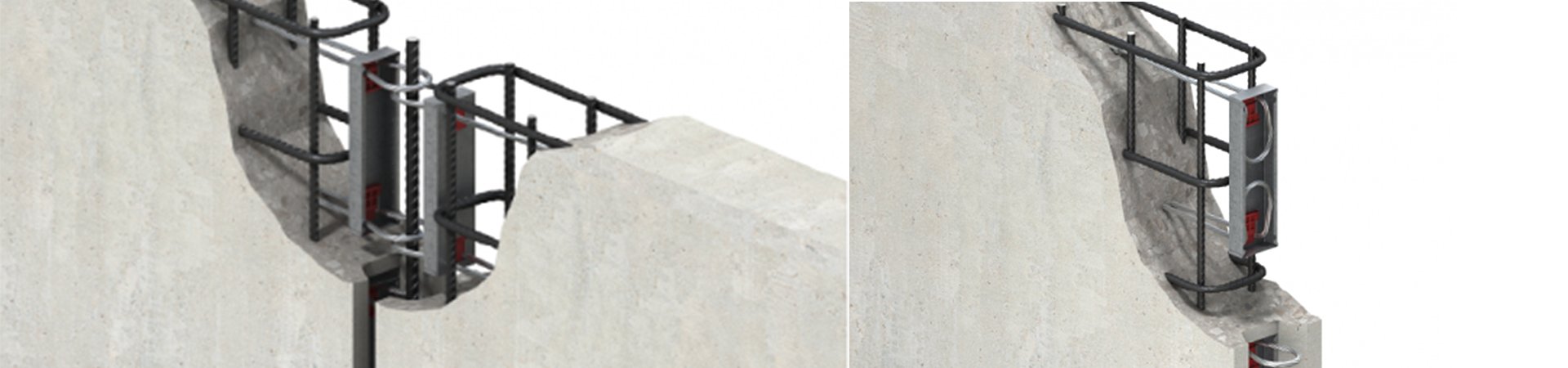

When using wire loop boxes, a vertical ribbed steel bar must always be installed

through the wire loops as shown here.

Case 1 – Where wire loops are used to transfer forces

When HM wire loop boxes are used to transfer forces in the joint, the anchorage of the wire loop box must be secured by overlapping the wire loop box sufficiently with the reinforcement of the concrete element. This should be done according to the engineer’s design, depending on your precise arrangement. Where the wire loop is used in a corner joint, a reinforcing bar should be installed into the inner edge of the fold of the HM wire loop box; the diameter of this bar should be the same as the reinforcement installed in the joint.

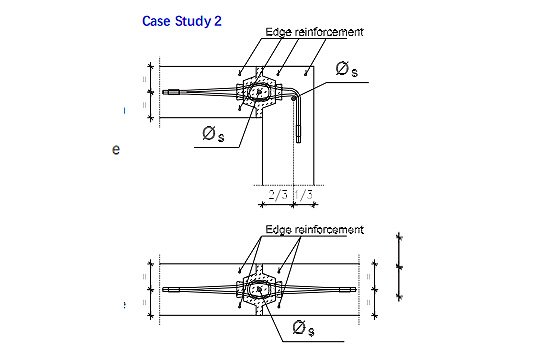

Case 2 – Where HM wire loops are not used to transfer forces

When wire loops are used to limit the cracking of the seam or to tie elements together without establishing the required force, additional reinforcement in the wall is recommended as shown here, including 2 additional 10mm diameter bars in each piece.

Attachment to the formwork:

The wire rope loop box must be securely attached so it cannot be moved during concrete casting. The concrete must be compacted carefully to prevent vibration. The wire rope loop boxes may be fastened to the formwork with nails or magnets.

The portion of the wire rope that enters the concrete element is installed adjacent to the reinforcement and does not need to be tied to the reinforcement.

Construction Applications

Connection Loop Boxes are widely used in various applications within the construction industry, particularly in precast concrete projects. Common applications include:

Precast wall connections: Securely connect vertical wall panels to create larger walls or enclosures.

Slab-to-wall connections: Provide a reliable connection between floor slabs and vertical members.

Beam-to-column connections: Provide secure anchor points for structural framing.

High-rise buildings: Provide fast, secure, and repeatable connections for multi-story construction projects. Industrial and Infrastructure Projects: Supporting large-scale facilities such as bridges, tunnels, and commercial complexes.

By simplifying assembly and improving load transfer, Connection Loop Boxes help contractors reduce construction time while ensuring quality and safety.

Benefits of Connection Loop Boxes

Enhanced Safety: Steel loops ensure a high-strength connection between components, reducing the risk of structural failure.

Time Savings: No complex on-site rebar tying or welding is required, significantly speeding up installation.

Design Flexibility: Suitable for a wide range of construction needs, from residential to large-scale infrastructure projects.

Cost-Effectiveness: By reducing labor requirements and minimizing construction time, Connection Loop Boxes help lower overall project costs.

Durability and Reliability: Made from high-quality materials, they provide long-lasting performance even in harsh environments.

Consistency and Quality Control: Manufactured under strict factory conditions, ensuring consistent quality and predictable performance across all units.

Comparison with Traditional Methods

Traditionally, connecting prefabricated components requires time-consuming processes such as manual rebar tying, welding, or on-site drilling. These methods often involve higher labor costs, longer installation times, and increased safety risks.

In contrast, Connection Loop Boxes offer a prefabricated solution with the following advantages:

Minimizes on-site labor.

Reduces human error.

Improves safety and precision.

Enables faster project delivery without compromising structural performance.

This makes them a significant improvement over traditional connection technologies.

Quality Assurance and Standards

At HULK Metal, our Connection Loop Boxes are CE-certified and undergo rigorous quality control before shipment, including:

Material Testing

Each incoming batch of raw materials must be accompanied by a material list clearly displaying the material composition and verifying the steel's strength and durability.

Load-bearing Testing

We perform random inspections and weight tests on finished products to ensure they meet safety requirements.

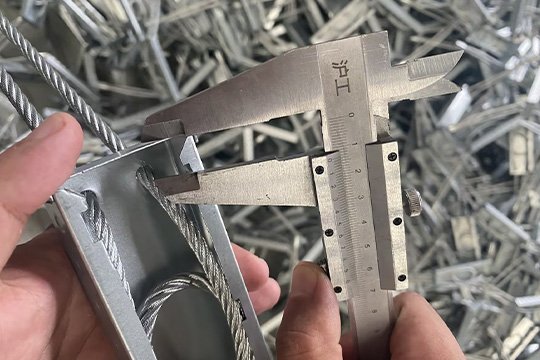

Dimensional Accuracy Inspection

Our quality inspectors conduct spot checks on semi-finished and finished products to ensure a perfect fit with the precast mold.

Surface Treatment

The boxes utilize galvanized sheet for enhanced corrosion resistance and longevity.

Our factory is certified to ISO9001, ISO14001, and ISO45001, ensuring the reliability of our precast concrete accessories in the global construction market.

Why Choose HULK Metal's Connection Loop Boxes?

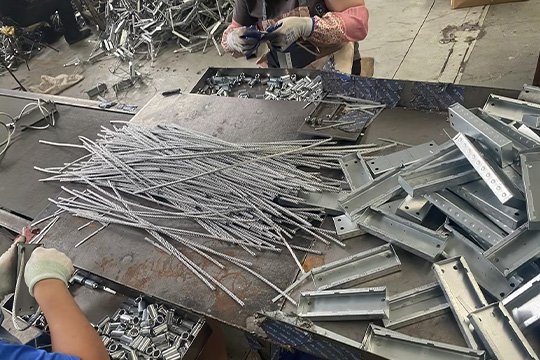

Extensive Expertise: With years of experience in metalworking and building solutions, our products are trusted by contractors worldwide.

Comprehensive Supply Chain: From raw material sourcing to final delivery, our supply chain ensures consistent quality and timely supply.

Shorter Production Cycles: We have a full range of connection loop box molds, enabling faster turnaround time for your orders.

Customization Options: We can customize designs and sizes to meet your project needs and devise the optimal production plan.

After-Sales Service: Our dedicated customer service team is available to promptly address any technical, shipping, or quality issues you may have.

Case Studies and Real-World Applications

High-Rise Residential Buildings: In multi-story apartment buildings, Connection Loop Boxes are used to connect hundreds of prefabricated wall panels, significantly reducing construction time while ensuring structural safety.

Industrial Facilities: Large-scale factories utilize Connection Loop Boxes for efficient floor-to-wall connections, supporting heavy equipment loads without the need for additional reinforcement.

Infrastructure Projects: In bridge and tunnel construction, Connection Loop Boxes provide a secure anchoring solution capable of withstanding extreme loads and environmental conditions.

These real-world applications highlight the versatility and reliability of our products in various construction environments.

Are you looking for reliable and high-performance Connection Loop Boxes for your next construction project? Partner with HULK Metal and we'll provide you with customized solutions, expert technical support, and quality assurance.

Contact us today to request a quote and learn how our Connection Loop Boxes can improve your construction efficiency and safety.
