Utility Lift Anchor For Construction
Description:
The Utility Lift Anchor is a cost-effective lifting solution designed for the safe handling of precast concrete components such as pipes, slabs, panels, and other structural elements. Its specially engineered rounded foot helps distribute lifting forces efficiently throughout the concrete, allowing high load capacities while maintaining a compact anchor design. For applications involving lower concrete strength or limited edge distances, extended anchor lengths are available to ensure reliable performance. Safe hoisting can be achieved without using a lifting clutch.
Parameters of HULK Metal Utility Lift Anchor For Construction
| MATERIAL | 20Mn2 / Q345D / CM490 / Stainless Steel / Customizable | ||||
| SURFACE TREATMENT | Raw Black / Electro-galvanized / Hot-dip Galvanized | ||||
| SAFETY FACTOR | ≥ 3 | ||||
| CERTIFICATE | ISO9001 / CE | ||||
| SWL (tons) | CODE | H(mm) | w(mm) | RD(mm) | WEIGHT(kg/pc) |
| 0.8 | HM-U-008080 | 79.4 | 134.3 | 11.4 | 0.18 |
| 1.4 | HM-U-014080 | 79.4 | 142.9 | 17 | 0.49 |
| 1.8 | HM-U-018095 | 95.25 | 149.5 | 11.4 | 0.21 |
| 2.0 | HM-U-020120 | 120.6 | 178.9 | 11.4 | 0.258 |
| 2.5 | HM-U-025170 | 171.5 | 236.6 | 11.4 | 0.356 |
| 3.5 | HM-U-035095 | 95.25 | 160.9 | 17 | 0.56 |
| 5.0 | HM-U-050120 | 120.6 | 189.7 | 17 | 0.66 |
| 7.5 | HM-U-075170 | 171.5 | 247 | 17 | 0.87 |
Features of HULK Metal Utility Lift Anchor For Construction
-
Higher Quality Precast Utility Lift Anchor For Construction:
Description of Utility Lift Anchor
Utility Lift Anchors are versatile lifting anchors developed for the safe handling, transport, and installation of precast concrete components. They are widely used in both reinforced and non-reinforced concrete products, including slabs, pipes, culverts, utility manholes, and other precast components.
Advantages
One of the key advantages of Utility Lift Anchors is their ability to connect directly to crane hooks, eliminating the need for a lifting clamp, thus simplifying lifting operations and reducing the need for additional lifting accessories. Their robust design allows them to withstand tensile and shear loads, making them suitable for a variety of lifting and tilting applications.
Utility Lift Anchors are constructed from high-strength alloy steel, offering superior durability and load-bearing capacity. They are available in hot-dip galvanized, electro-galvanized, or natural finishes to meet diverse environmental requirements. These anchors are produced using a hot forging process, ensuring consistent quality and reliable performance. Furthermore, we offer custom sizes, marking, and packaging options to meet specific project needs.
For Use With
Utility Anchors are commonly used together with Rubber Recess Formers to create a safe and efficient precast concrete lifting system. During casting, the rubber recess former securely positions the Utility Anchor in the mold and forms a recess around the anchor head. After the concrete has cured, the recess provides easy access for connecting the lifting hook or crane attachment. This combination ensures accurate anchor placement, protects the anchor during production, and improves lifting efficiency on-site.
User Guide

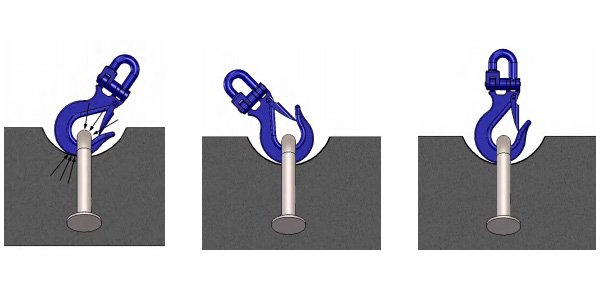

1. The hook must not contact the concrete beneath the anchor loop. This will result in a prying action and could cause premature failure.
2. The hook must not contact the concrete element.
3. The hook must not contact the concrete element.

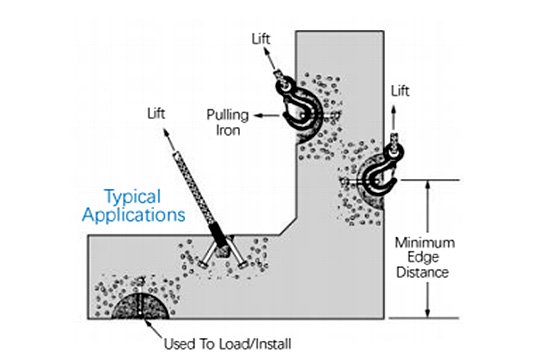

Placement of the utility lift anchor is dependent on the structural shape of the precast element. Utility lift anchors are not designed for thin edge installation. Always maintain minimum edge distances.
You can get free samples to check whether they can meet the requirements.Get Free Samples -
Utility Lift Anchor with Shorter Lead Time:
Utility Lift Anchor Manufacturing Process
Raw Material Inspection → Steel Cutting → Hot Forging → Trimming & Deburring → Surface Treatment (HDG / Electro-Galvanized / Plain Finish) → Dimensional Inspection → Load Testing → Marking & Identification → Packaging → Final Inspection → Shipment
Factory of Utility Lift Anchors
Advanced Forging Capability
Our Utility Lift Anchors are produced using advanced hot-forging technology, ensuring superior strength, consistent dimensions, excellent load-bearing performance, and reliable quality for demanding precast concrete lifting applications.
Flexible Batch Production
Whether you require prototype quantities, small trial orders, or large-volume production, our flexible manufacturing system ensures fast lead times, stable quality, and efficient order fulfillment.
Strong OEM & Customization Service
We provide comprehensive OEM solutions, including custom dimensions, load capacities, logos, surface finishes, packaging, and product markings to meet your specific market and project requirements.
Competitive Factory-Direct Pricing
With integrated production resources, optimized manufacturing processes, and a mature supply chain, we reduce production costs and offer highly competitive prices without compromising quality.
Strict Quality Control System
Every Utility Lift Anchor undergoes rigorous inspections throughout production, including material verification, dimensional checks, and performance testing, ensuring consistent quality and reliable lifting safety.
Reliable Global Supply Capability
Supported by experienced engineering, production, and logistics teams, we efficiently deliver Utility Lift Anchors to customers worldwide while maintaining stable quality and on-time shipment performance.
You can get a solution with shorter order delivery times and guaranteed quality and quantity.Get Your Free Solution -
Utility Lift Anchor for Better Service:
24/7 Service
Our dedicated support team is available around the clock to respond to inquiries, provide technical assistance, update order status, and ensure smooth communication throughout your project.
Quality Assurance Services
We implement strict quality control procedures, including raw material verification, dimensional inspections, and performance testing, ensuring every Utility Lift Anchor meets industry standards and customer requirements.
After-Sales Service
Our after-sales team provides prompt support for technical questions, product feedback, replacement requirements, and order follow-up, helping customers achieve reliable and long-term project success.
You can benefit from the comprehensive services of a dedicated client team.Contact Your Dedicated Service Team -
Cost-Controllable Utility Lift Anchor For Construction:
High Quality Is the Foundation
We manufacture Utility Lift Anchors using premium materials, advanced forging processes, and strict quality inspections to ensure dependable strength, durability, and lifting performance in demanding applications.
Comprehensive Cost Control
Our integrated supply chain, efficient production management, and optimized manufacturing processes help reduce overall procurement costs while maintaining consistent product quality and delivery reliability.
Build Your Own Brand
We support OEM and private-label services, including customized logos, markings, packaging, and specifications, helping you strengthen brand recognition and expand your market presence.
You can leave a request and get a more suitable quotation.Get a Better Quotation
