Ring Clutch for Flat Lifting System

Features About Ring Clutch for Flat Lifting System:

• Higher Quality Ring Clutch for Flat Lifting System:

  What is Ring Clutch Introduction?



  HULK Metal Ring Clutch is a reliable lifting device specially designed for safe handling and transportation of precast concrete elements. Manufactured in compliance with the “Safety Regulations for Lifting Precast Concrete Units,” it provides secure anchor engagement, stable lifting performance, and enhanced operational safety for demanding construction environments.



  Components



  The Ring Clutch is mainly composed of a durable clutch head, a precision-engineered curved locking bolt, and a high-strength shackle. Each component is manufactured from premium forged steel materials to ensure excellent load-bearing capacity, wear resistance, and long-term durability during repeated lifting operations.



  Shackle



  The high-strength shackle provides excellent flexibility during lifting and positioning operations. Ring clutches showing visible cracks, deformation, corrosion, or excessive wear must be removed from service immediately. To ensure safe operation, all load-bearing lifting devices should be professionally inspected at least once every year.



  Clutch Head



  The clutch head is designed to securely connect with lifting anchors and maintain stable engagement during transportation and installation. If deformation, cracking, or excessive mouth opening is detected, the ring clutch must be withdrawn from use immediately, as damaged clutch heads cannot be repaired safely.



  Locking Bolt



  The locking bolt enables quick and secure connection between the ring clutch and flat lifting system. Bent, worn, or damaged locking bolts can affect lifting safety and operational stability. Any ring clutch with defective locking bolts must be removed from service and replaced promptly.



  Ring Clutch Features



  1. Compatible with a wide range of spread anchors, including Two Hole Anchors, Plate Spread Anchors, Flat Foot Spread Anchors, and other flat lifting systems for versatile applications.



  2.CE certified and manufactured under strict quality control standards, ensuring reliable performance, excellent durability, and compliance with international safety requirements for precast concrete lifting operations.



  3.Designed with a safety factor greater than 5, providing enhanced lifting security, stable load handling, and dependable performance in demanding precast concrete construction and transportation environments.




  You can get free samples to check whether they can meet the requirements.

  Get Free Samples
• Ring Clutch for Flat Lifting System with shorter Lead Time:

  Ring Clutch Application and Installation



  HULK Metal Ring Clutch is widely used in precast concrete lifting systems for the safe transportation, turning, and installation of concrete elements. Its reliable locking structure and flexible shackle design make it suitable for demanding construction environments.



   Main Applications



   Used for lifting precast wall panels, beams, columns, stairs, pipes, slabs, and customized concrete components.

   Compatible with various lifting anchors, including Two Hole Anchors, Plate Spread Anchors, and Flat Foot Spread Anchors.

   Suitable for precast factories, bridge construction projects, infrastructure installations, and commercial building construction.



   Installation Procedure



   Check the ring clutch, anchor, and surrounding concrete surface before lifting to ensure there are no cracks, deformation, or excessive wear.

   Align the clutch head with the anchor recess and insert the locking bolt completely into the anchor head.

   Rotate and lock the clutch correctly to achieve secure engagement before lifting operations begin.

   Apply lifting force gradually to avoid sudden shock loading or unstable movement during transportation.



   Safe Operating Recommendations



   Always use lifting equipment with suitable load capacity.

   Ensure lifting angles and directions comply with project requirements.

   Only trained personnel should perform lifting operations to reduce safety risks and improve efficiency.



  Warning



  Proper use and regular inspection of the Ring Clutch are essential to maintain lifting safety and extend service life. Incorrect operation or damaged components may cause serious accidents or lifting failure.



   Inspection Requirements



   Inspect the clutch body, shackle, and locking bolt before every lifting operation.

   Remove the ring clutch from service immediately if cracks, deformation, corrosion, or excessive wear are detected.

   Perform professional safety inspections at least once annually according to lifting equipment regulations.



   Operating Precautions



   Never exceed the specified working load limit of the ring clutch.

   Avoid side pulling, shock loading, or sudden movement during lifting operations.

   Do not use damaged anchors or mismatched lifting accessories with the ring clutch.



   Storage and Maintenance



   Store ring clutches in a clean and dry environment to prevent corrosion.

   Clean dirt, concrete residue, and moisture after use to maintain smooth operation.

   Replace worn components promptly to ensure stable lifting performance and long-term operational safety.

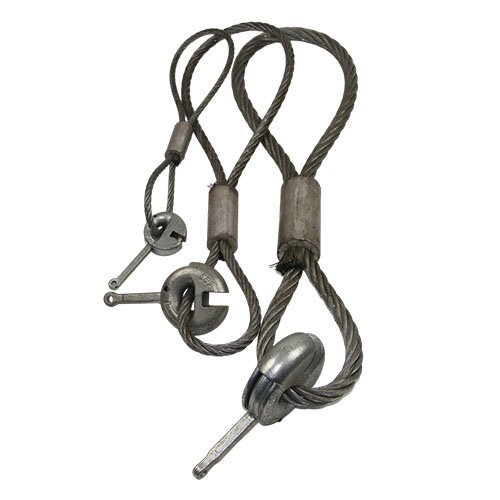

  Wire Rope Ring Clutch / Cable Ring Clutch









  The Wire Rope Ring Clutch is a flexible and reliable lifting device designed for safe handling of precast concrete elements used with the Flat Lifting Anchor System. It consists of a high-strength wire rope cable, swage fitting, clutch body, and curved locking bolt handle. Compared with standard ring clutches, the wire rope design provides greater flexibility during lifting, positioning, and rotation operations, especially in confined or complex working environments. Manufactured from durable forged steel and high-tensile wire rope materials, the Wire Rope Ring Clutch delivers excellent load capacity, stable performance, and enhanced operational safety. It is widely used for challenging precast concrete lifting and turning applications.




  How To Inspect & Maintain The Ring Clutch And Wire Rope Ring Clutch?




  Visual Inspection



  Before each lifting operation, inspect the clutch body, locking bolt, shackle, and wire rope for cracks, deformation, corrosion, or excessive wear that may affect lifting safety.



  Functional Check



  Ensure the locking bolt and moving components operate smoothly and securely engage with the lifting anchor without sticking, looseness, or abnormal movement during operation.



  Remove Damaged Components



  Ring Clutches or Wire Rope Ring Clutches showing visible damage, bent parts, broken wires, or excessive wear must be removed from service immediately for safety reasons.



  Cleaning and Storage



  After use, clean off concrete residue, dirt, and moisture. Store the lifting devices in a clean and dry environment to reduce corrosion and extend service life.



  Regular Professional Inspection



  To maintain safe operating conditions, all load-bearing lifting devices should be professionally inspected at regular intervals according to lifting safety regulations and project requirements.




  You can get a solution with shorter order delivery times and guaranteed quality and quantity.

  Get Your Free Solution
• Ring Clutch for Flat Lifting System with Better Service:

  Dedicated and Professional Customer Service Team




  Our experienced customer service team provides fast communication, technical consultation, order tracking, and customized support to ensure efficient cooperation and a smooth purchasing experience from inquiry to delivery.




  Package Service




  We use strong export-grade wooden cases and moisture-proof packaging bags to protect Ring Clutches from impact, corrosion, and humidity during storage and international transportation, ensuring products arrive safely and in excellent condition.




  Quality Assurance Services




  Strict quality control procedures include magnetic particle inspection, tensile strength testing, dimensional inspection, and performance verification to ensure every Ring Clutch meets international lifting safety and durability standards.




  Aftersales Service




  Our responsive aftersales team provides technical support, product guidance, replacement solutions, and prompt issue handling to help customers maintain safe and efficient lifting operations after delivery.




  You can benefit from the comprehensive services of a dedicated client team.

  Contact Your Dedicated Service Team
• Cost-controllable Ring Clutch for Flat Lifting System:

  Higher Quality Ring Clutch for Flat Lifting System



  Manufactured from high-strength forged steel with strict quality inspections, our Ring Clutch delivers reliable lifting performance, excellent durability, and enhanced operational safety for demanding precast concrete applications.



  Comprehensive Cost Control



  Through optimized production management, stable material sourcing, and efficient supply chain coordination, we help customers reduce purchasing costs while maintaining consistent product quality and reliable delivery schedules.



  Shape Your Brand Image



  Customized logo marking, packaging solutions, and professional product quality help strengthen your market competitiveness, improve customer trust, and support the long-term development of your lifting equipment brand.




  You can leave a request and get a more suitable quotation.

  Get a Better Quotation
