1.3T Lifting Pin Anchor

Description:

The Lifting Pin Anchor System is a reliable and efficient solution designed for the safe lifting and handling of precast concrete components. As a key component of the Lifting Pin Anchor System, it works with a recess former and lifting clutch to ensure safe and reliable load transfer during transport and installation. The 1.3T Lifting Pin Anchor is constructed from high-strength steel, has a 3x safety factor, and is CE certified. Its compact design makes it easy to install inside concrete components while maximizing on-site safety.

share:
Inquiry Now
Catalog Download
  • Parameters
  • Features
  • Processes
  • Others
  • Blogs
  • Reviews
  • Top

Parameters of HULK Metal Lifting Pin Anchor:

Lifting Pin Anchor
MATERIAL20Mn2 / Q345D / CM490 / Stainless Steel / Customizable
SURFACE TREATMENTRaw Black / Electro-galvanized / Hot-dip Galvanized
SAFETY FACTOR≥ 3
CERTIFICATEISO9001 / CE
SWL (tons)CODELENGTH (mm)D (mm)WEIGHT (kg/pc)
1.3HM-P-01303535100.04
HM-P-01304040100.05
HM-P-01304545100.05
HM-P-01305050100.05
HM-P-01305555100.06
HM-P-01306565100.06
HM-P-01307575100.07
HM-P-01308585100.07
HM-P-013120120100.09
HM-P-013170170100.12
HM-P-013240240100.17


2.5HM-P-02504545140.11
HM-P-02505555140.12
HM-P-02506565140.14
HM-P-02507070140.14
HM-P-02507575140.15
HM-P-02508585140.16
HM-P-02509090140.16
HM-P-02509595140.17
HM-P-025100100140.18
HM-P-025115115140.19
HM-P-025120120140.20
HM-P-025125125140.20
HM-P-025140140140.21
HM-P-025170170140.26
HM-P-025210210140.30
HM-P-025240240140.33
HM-P-025280280140.38
HM-P-025480480140.64
4.0HM-P-04005555180.24
HM-P-04006565180.25
HM-P-04007070180.26
HM-P-04007575180.27
HM-P-04008080180.28
HM-P-040100100180.32
HM-P-040110110180.34
HM-P-040140140180.40
HM-P-040150150180.42
HM-P-040160160180.44
HM-P-040170170180.46
HM-P-040180180180.48
HM-P-040210210180.54
HM-P-040240240180.60
HM-P-040340340180.80
HM-P-040420420180.96
5.0HM-P-05005555200.27
HM-P-05006060200.29
HM-P-05006565200.30
HM-P-05007575200.32
HM-P-05008080200.33
HM-P-05008585200.34
HM-P-05009090200.36
HM-P-05009595200.37
HM-P-050100100200.38
HM-P-050110110200.40
HM-P-050120120200.44
HM-P-050140140200.49
HM-P-050150150200.51
HM-P-050160160200.52
HM-P-050165165200.53
HM-P-050170170200.54
HM-P-050180180200.57
HM-P-050210210200.64
HM-P-050240240200.71
HM-P-050250250200.74
HM-P-050300300200.85
HM-P-050340340200.95
HM-P-050480480201.28
HM-P-050540540201.42
HM-P-050680680201.76
7.5HM-P-07508585240.57
HM-P-07509595240.60
HM-P-075100100240.62
HM-P-075105105240.64
HM-P-075120120240.68
HM-P-075140140240.75
HM-P-075150150240.79
HM-P-075160160240.82
HM-P-075165165240.84
HM-P-075170170240.86
HM-P-075200200240.96
HM-P-075240240241.10
HM-P-075300300241.31
HM-P-075340340241.44
HM-P-075540540242.15
HM-P-075680680242.60
10.0HM-P-100100100280.82
HM-P-100110110280.85
HM-P-100115115280.87
HM-P-100120120280.90
HM-P-100135135280.96
HM-P-100140140280.99
HM-P-100150150281.03
HM-P-100160160281.08
HM-P-100165165281.10
HM-P-100170170281.12
HM-P-100180180281.17
HM-P-100200200281.27
HM-P-100210210281.31
HM-P-100220220281.36
HM-P-100240240281.46
HM-P-100250250281.50
HM-P-100340340281.92
HM-P-100500500282.67
HM-P-100540540282.86
HM-P-100650650283.38
HM-P-100680680283.52
15.0HM-P-150110110341.60
HM-P-150120120341.67
HM-P-150140140341.81
HM-P-150160160341.95
HM-P-150165165341.98
HM-P-150180180342.09
HM-P-150200200342.22
HM-P-150210210342.30
HM-P-150240240342.52
HM-P-150300300342.94
HM-P-150340340343.23
HM-P-150400400343.65
HM-P-150825825346.68
HM-P-150840840346.79
20.0HM-P-200100100381.90
HM-P-200165165382.48
HM-P-200180180382.61
HM-P-200200200382.79
HM-P-200240240383.15
HM-P-200250250383.24
HM-P-200300300383.68
HM-P-200340340384.04
HM-P-200500500385.46
HM-P-200750750387.69
HM-P-20010001000389.92
32.0HM-P-320200200505.66
HM-P-320250250506.40
HM-P-320260260506.57
HM-P-320280280506.87
HM-P-320320320507.50
HM-P-3205005005010.26
HM-P-3207007005013.35
HM-P-3208708705015.96
HM-P-320100010005017.97
HM-P-320120012005021.05


Features of HULK Metal 1.3T Lifting Pin Anchor:

  • Higher Quality 1.3T Lifting Pin Anchor:

    1.3T Lifting Pin Anchor



    The 1.3T Lifting Pin Anchor is designed for the safe lifting, handling, and transport of precast concrete components. As part of a complete lifting anchor system, it effectively absorbs dynamic stresses generated during lifting and transport operations. This 1.3-ton lifting anchor is manufactured from high-quality, high-strength steel and undergoes rigorous quality control to ensure stable load-bearing capacity, durability, and on-site safety.



    HULK Metal also offers customized solutions based on technical or economic requirements, or possibly based on your existing/available lifting equipment, to meet specific design, equipment, or economic needs. We can develop entirely new solutions based on your design and dimensions, or integrate products from our standard product range to meet the needs of your most challenging projects.



    Introduction



    MATERIAL: 20Mn2 / Q345D / CM490 / Stainless Steel / Customizable



    SURFACE TREATMENT: Raw Black / Electro-galvanized / Hot-dip Galvanized



    SAFETY FACTOR: ≥ 3



    CERTIFICATE: ISO9001 / CE



    Applications



    1.3T Lifting Pin Anchors are primarily used for lifting light to medium-weight precast concrete components, such as wall panels, stairs, small beams, balconies, and building components. They are widely used in residential, commercial, and modular building projects that require controlled handling and precise positioning.


    You can get free samples to check whether they can meet the requirements.
    Get Free Samples
  • 1.3T Lifting Pin Anchor with Shorter Lead Time:

    Even in thin-walled structures, the load can be securely transmitted into the concrete.

    The round symmetrical shape of the anchor foot eliminates the need for specific

    positioning during installation. The Lifting Pin Anchor offers advantages over the

    re-bar in terms of concentrated load distribution for typical wall thicknesses, as opposed

    to the gradual and supposedly gentle load transfer. Extensive tests conducted at the

    Technical University in Darmstadt have demonstrated that the anchor foot initiates

    a cone-shaped cracking pattern. Using longer anchors with greater embedments

    activates a larger section of concrete.

    Due to the presence of corresponding Lifting Clutch and Recess Former for each lifting

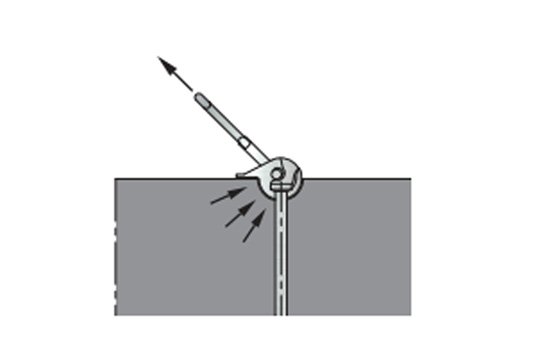

    group, it is impossible to incorrectly couple parts from different Load groups. Another

    benefit is that during the diagonal pull, the Lifting Link rests against the concrete,

    enabling the direct transfer of horizontal load into the concrete.

    Additional reinforcement is required for slope tension in thin-walled elements.

    However, if the transverse tension is at a 90° angle to the floor plane, meaning that the

    wall elements are vertically sloping, no extra reinforcement is needed (Details on page

    10). Other wall units do not require additional reinforcement.


    You can get a solution with shorter order delivery times and guaranteed quality and quantity.
    Get Your Free Solution
  • 1.3T Lifting Pin Anchor for Better Service:

    24/7 Service


    Our professional service team is available around the clock to support your project needs, ensuring quick responses, timely coordination, and uninterrupted progress from inquiry to final delivery.



    Quality Assurance Services


    Strict quality control procedures are applied at every production stage, including material inspection, dimensional checks, and load testing, to ensure reliable performance and consistent product quality.



    After-Sales Service



    We provide responsive after-sales support, including technical guidance, problem resolution, and replacement solutions, ensuring long-term reliability and customer satisfaction after product delivery.


    You can benefit from the comprehensive services of a dedicated client team.
    Contact Your Dedicated Service Team
  • Cost-Controllable 1.3T Lifting Pin Anchor:

    High-Quality 1.3T Lifting Pin Anchor


    The 1.3T Lifting Pin Anchor is manufactured using a hot forging process, ensuring high material density, excellent mechanical strength, and stable load performance for safe, reliable lifting of precast concrete elements.



    Comprehensive Cost Control


    Long-term partnerships with raw material suppliers provide stable pricing advantages, while continuous large-scale production of lifting pin anchors improves manufacturing efficiency, reduces unit costs, and ensures consistent supply for customer projects.



    Build Your Own Brand


    From customized engineering designs to OEM manufacturing services, we support partners with flexible, scalable solutions that help create differentiated products, strengthen brand identity, and improve competitiveness in global construction markets.


    You can leave a request and get a more suitable quotation.
    Get a Better Quotation

Procurement Process

  • 01
    In-depth understanding of your requirement.
  • 02
    In-depth understanding of your requirement.
  • 03
    In-depth understanding of your requirement.
  • 04
    In-depth understanding of your requirement.
  • 05
    In-depth understanding of your requirement.
  • 09
    In-depth understanding of your requirement.
  • 08
    In-depth understanding of your requirement.
  • 07
    In-depth understanding of your requirement.
  • 06
    In-depth understanding of your requirement.

Other Precast Concrete Accessories You Might Want to Know

Besides lifting pin anchors, we also provide Spherical Head Lifting Anchors, Lifting Clutch For Concrete, and Recess Formers For Lifting Anchors. You can click on the corresponding picture for details. We will provide you with a full range of production services, and you can rest assured to place your order with us.

You Can Know About Lifting Pin Anchors in Blogs

Here is what we can organize about the introduction, production, and quality inspection of the Lifting Pin Anchors, as well as some sharing from customers and details of our delivery. You can leave us a comment if you want to share or get some content about Dog Bone Lifting Anchors.
